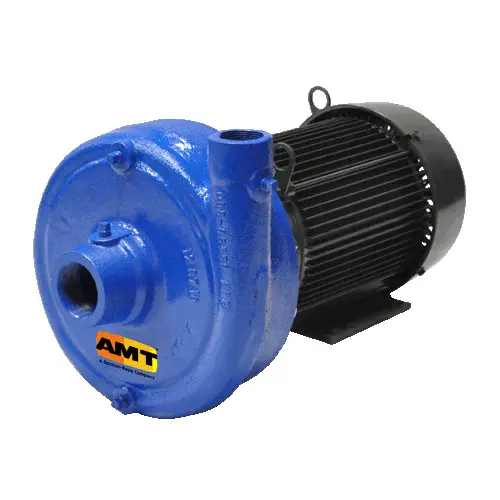

AMT 4201-95 1 1/2" x 2" NPT 1750 RPM Cast Iron Straight Centrifugal Pump, W/ 5 HP TEFC

Part Number: 4201-95
The actual product may vary from images shown
$2,736.75
QTY:


4201-95 DETAILS

AMT 4201-95 1 1/2" x 2" NPT 1750 RPM Cast Iron Straight Centrifugal Pump, W/ 5 HP TEFC

The AMT Cast Iron 1750 RPM Solids Handling End Suction Centrifugal pump delivers high efficiency performance that minimizes operation and energy costs. Built to last, each pump features a precision cast bronze impeller that is dynamically balanced to minimize vibration and maximize motor bearing life. Pullfrom-rear design simplifies maintenance without disturbing piping connection. Gauge taps at the suction and discharge ports allow for system monitoring. Maximum 1/4″ diameter solids handling and optional seal flush/air relief valve is available for vertical installations. Pumps require a flooded suction and positive suction pressure.

Discharge Size / Connection: 1.5" FNPT
Suction Size / Connection: 2" FNPT
Main Construction Materials: Cast Iron
Horsepower: 5Type: TEFC
Frame182JM
Phase: 3
VAC/60 Hz: 208-230/460
Full Load Amps: 22/11


Replaces No Longer Sold AMT 420A-95

4201-95 FEATURES
  • Cast Iron Construction
  • Silicon Bronze Precision Cast Dynamically Balanced Impeller
  • Viton® Silicon Carbide/Carbon Mechanical Seal
  • Bronze Case Wear Ring
  • 2" x 1.5" NPT Ports
  • Pull-From-Rear Design Permits Easy Servicing Without Disturbing Piping
  • 1/4" NPT Gauge Taps on Suction & Discharge Ports For System Monitoring
  • Bronze Shaft Sleeve to Protect Motor Shaft
  • Maximum Casing Pressure 175 PSI
  • Maximum Temperature 200° F
  • Includes Seal Flush/Air Relief Valve
  • Front Drain Plugs
  • TEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors

4201-95 SPECS

  • Pump Type:
  • Brand: AMT®
  • Main Material: Cast Iron
  • Displacement per Stroke (gal):
  • Driver Type:
  • Elastomers:
  • Engine Type:
  • Fuel Tank Capacity:
  • Full Load Current: 22/11
  • Inlet Size: 2
  • Inlet Connection Type: FNPT
  • Max Discharge Pressure:
  • Max FLow Rate:
  • Max Solids Size:
  • Motor Frame: 182JM
  • Model #:
  • Outlet Size: 1.5
  • Outlet Connection Type: FNPT
  • Porting Position:
  • Power: 5
  • RPM:
  • Run Time:
  • Seal Material:
  • Shipping Weight LBS: 215.00
  • Shipping Length IN: 21.10
  • Shipping Width IN: 16.00
  • Shipping Height IN: 12.80
  • SKU: AT420195SP
  • MPN: 4201-95
  • Customs Code:
