Home / Barmesa® Pumps / Barmesa® 62030131 BSP Close Coupled 3 In 10 HP Self-Priming Centrifugal Pump, 230/460 Volts, Bronze fitted, 3 Phase; Model No BS

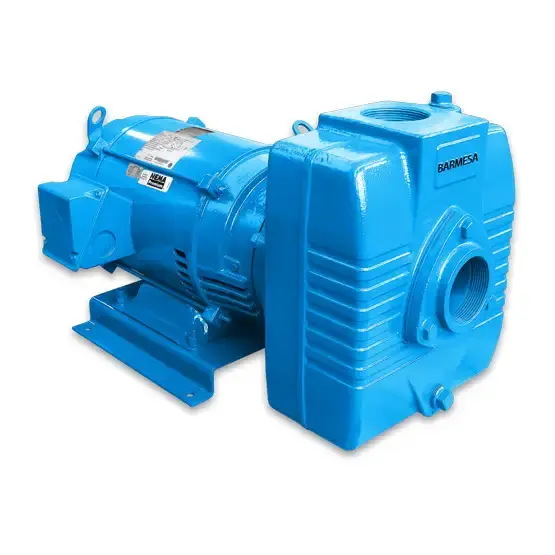

Barmesa® 62030131 BSP Close Coupled 3 In 10 HP Self-Priming Centrifugal Pump, 230/460 Volts, Bronze fitted, 3 Phase; Model No BS

Part Number: 62030131
The actual product may vary from images shown
$7,194.00
QTY:


62030131 DETAILS

Barmesa® 62030131 BSP Close Coupled 3 In 10 HP Self-Priming Centrifugal Pump, 230/460 Volts, Bronze fitted, 3 Phase

Also Referenced As Model Number: BSP20CCE3-TBF

Compactly designed with closely coupled motors and pumps, these Barmesa® self-priming centrifugal units require no shaft alignment and are effortlessly installed. Ideal for confined spaces and rapid deployment needs, they efficiently self-prime and pump fluids without external aid. Suited for various settings, including residential, commercial, and industrial applications, they excel in fluid transfer, circulation, and boosting where efficiency is paramount.

Details Include:
Size: 3 x 3
Discharge: 3" NPT, female
Spherical Solids Handling: 3/4"
RPM: 3500
Enclosure: TEFC
Motor: ODP or TEFC, C-face, footed, squirrel cage induction, Class B or F insulation. Three-phase, 208/230 & 460 V, 60 Hz.
Impeller: open, trash type, dynamically balanced. Cast iron ASTM A-48, Class 30.

62030131 SPECS

  • Brand: BARMESA®
  • Pump Type: Self-Priming Centrifugal
  • Inlet Connection Type: FNPT
  • Main Material: Bronze fitted
  • Outlet Size: 3
  • Inlet Size:
  • Outlet Connection Type: FNPT
  • RPM: 3500
  • Horsepower: 10
  • Phase: 3
  • Wetted Material:
  • Hertz:
  • GPM:
  • Voltage: 230/460
  • Cord Length:
  • Max Solids Size: 0.75
  • Shaft Material: 1035 Cold Rolled Steel
  • Shipping Weight LBS: 301.00
  • Engine Type:
  • Shipping Length IN: 26.36
  • Stages:
  • Shipping Width IN: 15.00
  • Shipping Height IN: 15.90
  • Motor Frame:
  • SKU: BM62030131SP
  • Amperage:
  • MPN: 62030131
  • Impeller Material:
  • Seal Elastomer:
  • Customs Code:
