Home / Barmesa® Pumps / Barmesa® 62170101 4 In 3 HP Solids Handling Submersible Pump, Manual Switch, 40' Cable; Model No 4BSE302SS

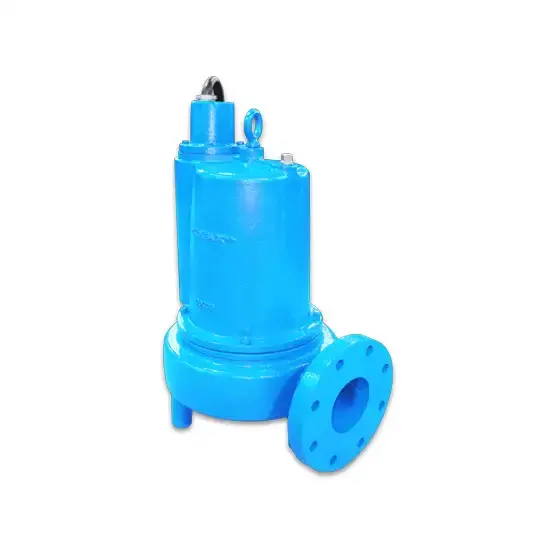

Barmesa® 62170101 4 In 3 HP Solids Handling Submersible Pump, Manual Switch, 40' Cable; Model No 4BSE302SS

Part Number: 62170101
The actual product may vary from images shown
$5,500.44
QTY:


62170101 DETAILS

Barmesa® 62170101 4 In 3 HP Solids Handling Submersible Pump, Manual Switch, 40' Cable

Also Referenced As Model Number: 4BSE302SS

In industrial, municipal, and commercial contexts, these Barmesa® submersible solids handling pumps efficiently manage water containing solid particles such as sewage or sludge. They are integral to sewage treatment, wastewater systems, construction, and mining operations, ensuring smooth water management by preventing clogs and facilitating efficient wastewater handling.

Details Include:
Discharge: 4", 125 lb, flange horizontal.
Spherical Solids Handling: 3"
RPM: 1750
Motor: Single-phase: NEMA L, permanent split capacitor, 200/230 volts, 60 Hz, 1750 RPM, oil filled, overload protection in motor. Three-phase: NEMA B, 208/230 & 460 volts, 60 Hz, 1750 RPM, oil filled. Requires overload protection to be included in control panel.
Impeller: 2 vane, open, with vanes on back side. Cast iron ASTM A-48, class 30.
Automatic/Manual Switch: Manual
Cord Length: 40'

62170101 SPECS

  • Brand: BARMESA®
  • Pump Type: Solids Handling Submersible
  • Outlet Size: 4
  • Inlet Connection Type: Flange
  • Main Material:
  • Inlet Size:
  • Horsepower: 3
  • Outlet Connection Type: Flange
  • Max Solids Size: 3
  • RPM: 1750
  • Shipping Weight LBS: 245.00
  • Phase: 1
  • Shipping Length IN: 15.88
  • Wetted Material:
  • Engine Type:
  • Hertz: 60
  • GPM:
  • Voltage: 230
  • Shipping Width IN: 12.88
  • Cord Length: 40'
  • Shipping Height IN: 23.50
  • Shaft Material: 416 Series Stainless Steel
  • SKU: BM62170101SP
  • MPN: 62170101
  • Stages:
  • Motor Frame:
  • Amperage:
  • Impeller Material:
  • Seal Elastomer:
  • Customs Code:
