Home / Barmesa® Pumps / Barmesa® 62170302 6 In 30 HP Solids Handling Submersible Pump, Manual Switch, 25' Cable; Model No 6BSE30044HLDS

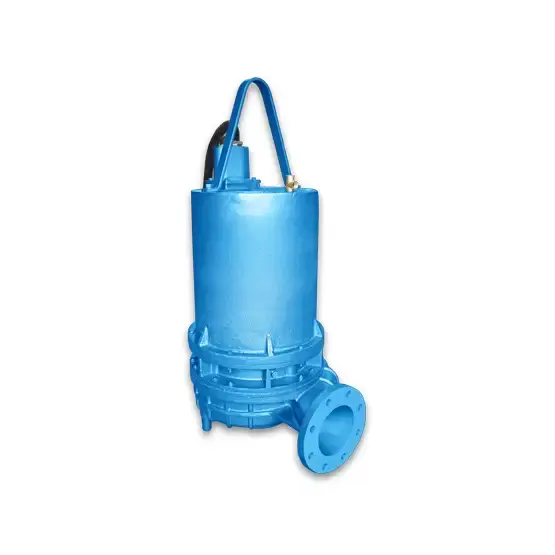

Barmesa® 62170302 6 In 30 HP Solids Handling Submersible Pump, Manual Switch, 25' Cable; Model No 6BSE30044HLDS

Part Number: 62170302
The actual product may vary from images shown
$24,717.00
QTY:


62170302 DETAILS

Barmesa® 62170302 6 In 30 HP Solids Handling Submersible Pump, Manual Switch, 25' Cable

Also Referenced As Model Number: 6BSE30044HLDS

In industrial, municipal, and commercial contexts, these Barmesa® submersible solids handling pumps efficiently manage water containing solid particles such as sewage or sludge. They are integral to sewage treatment, wastewater systems, construction, and mining operations, ensuring smooth water management by preventing clogs and facilitating efficient wastewater handling.

Details Include:
Discharge: 6", 125 lb, flange horizontal.
Spherical Solids Handling: 3"
RPM: 1750
Motor: NEMA B, three-phase, 230/460 volts, 60 Hz, oil filled. Requires overload protection to be included in control panel.
Impeller: 3 vane, closed, with vanes on back side. Cast iron ASTM A-48, class 30.
Automatic/Manual Switch: Manual
Cord Length: 25'

62170302 SPECS

  • Brand: BARMESA®
  • Pump Type: Solids Handling Submersible
  • Inlet Connection Type: Flange
  • Main Material:
  • Outlet Size: 6
  • Inlet Size:
  • Outlet Connection Type: Flange
  • RPM: 1750
  • Horsepower: 30
  • Phase: 3
  • Wetted Material:
  • Hertz: 60
  • GPM:
  • Voltage: 460
  • Cord Length: 25'
  • Max Solids Size: 3
  • Shaft Material: 416 Series Stainless Steel
  • Shipping Weight LBS: 957.00
  • Engine Type:
  • Shipping Length IN: 25.44
  • Stages:
  • Shipping Width IN: 21.00
  • Shipping Height IN: 49.50
  • Motor Frame:
  • SKU: BM62170302SP
  • Amperage:
  • MPN: 62170302
  • Impeller Material:
  • Seal Elastomer:
  • Customs Code:
