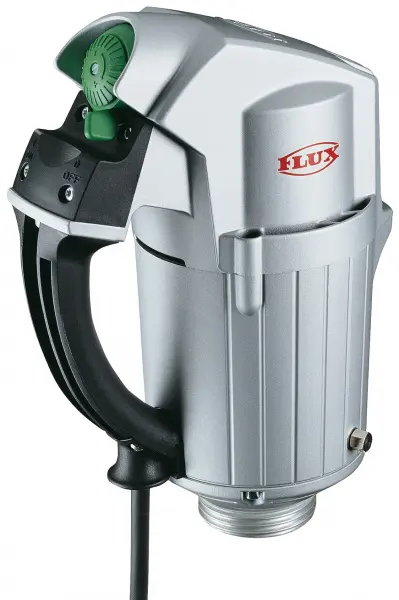

FLUX® 10-40001000 MOTOR F4000EX EL 230V BRUSHLES

Part Number: 10-40001000
The actual product may vary from images shown
$2,435.00
QTY:


10-40001000 DETAILS

FLUX® 10-400 01 000 MOTOR F4000EX EL 230V BRUSHLES
Old FLUX® Part Number 400.01.000
FLUX® Alternate Format Part Number 10-40001000

10-40001000 FEATURES
  • Explosion Proof, compact, brushless motor (for negligible wear), robust double shell housing
  • Explosion-proof, Certified to ATEX-Directive 94/9/EC; EC-Type-Exam Certificate PTB 03 ATEX 1042
  • Explosion-proof to II 2 G Ex de IIC T5, Protection class I; Jet-proof according to IP 55
  • 600 Watt, 230 Volt, 50-60 Hz; Electronic monitoring of speed, voltage & temp;
  • Works with all FLUX barrel and container pumps

10-40001000 SPECS

  • Part Type: Motor
  • Brand: FLUX®
  • Part Sub-Type: Electric Motor
  • Frequency:
  • Driver Type: Electric Motor
  • Main Material: Aluminum
  • Shipping Weight LBS: 13.66
  • Shipping Length IN: 5.90
  • Shipping Width IN: 8.31
  • Max Discharge Pressure:
  • Max GPM:
  • Shipping Height IN: 11.50
  • Max Liquid Viscosity:
  • SKU: FX40001000SP
  • Impeller Material:
  • MPN: 10-40001000
  • Outlet Size:
  • Seal Material:
  • Type:
  • Customs Code:
