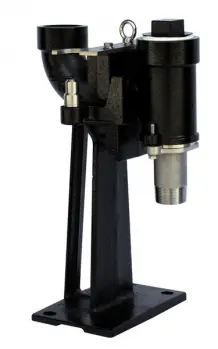

Flo Pro® FPBEA125CV 1 1/4" Base Elbow Check Valve

Part Number: FPBEA125CV
The actual product may vary from images shown
$961.00
QTY:


FPBEA125CV DETAILS

Flo Pro® FPBEA125CV 1 1/4" Base Elbow Check Valve for Guide Rail System

Compatible with ANY 1 1/4" NPT Vertical Discharge Pump

Includes Lift-Out Flange, Pump Adapter and Stainless Steel Hardware


  • Ductile Iron Base Elbow 2.00" NPT Discharge
  • Ductile Iron Check Valve Lift-Out Flange with O-Ring Seal
  • 1.25" NPT Stainless STEEL PUMP® Adapter
  • Stainless Steel Guide Plate and Fasteners
  • Designed for 3/4" or 1" Rails
  • Easy to Install & Remove
  • Up to 200lb Pump

Main Construction Material: Cast Ductile Iron


Material Composition
  • Base Elbow: 65-45-12 Cast Ductile Iron
  • Lift-Out Flange: 65-45-12 Cast Ductile Iron
  • Pump Adapter: Cast 304 Stainless Steel
  • Lower Guide Plate: 304 Stainless Steel
  • Fasteners: 304 Stainless Steel
  • Check Valve Ball: Solid Rubber Nitrile

Pump Connection: 1 1/4" NPT
2" NPT
Acceptable Guide Rail Size: 3/4" or 1"
Inlet Size: 1.25

FPBEA125CV FEATURES
  • Constructed from Ductile Iron
  • Lift-Out and Pump Adapter Have BUNA-N O-Ring Seal
  • Powder Coated for Corrosion Resistance
  • Stainless Lift-out Plate and Eyebolt Included
  • Standard or Integral Check Valve Design

FPBEA125CV SPECS

  • Part Type: Accessory
  • Brand: FLO PRO®
  • Part Sub-Type: Base Elbow, Check Valve
  • Main Material: Cast Ductile Iron
  • InLet Connection Size: 1
  • Max Pump WeIght: 200
  • Shipping Weight LBS: 46
  • Shipping Length IN: 24
  • Shipping Width IN: 12
  • Shipping Height IN: 13
  • SKU: FPBEA125CVSP
  • MPN: FPBEA125CV
