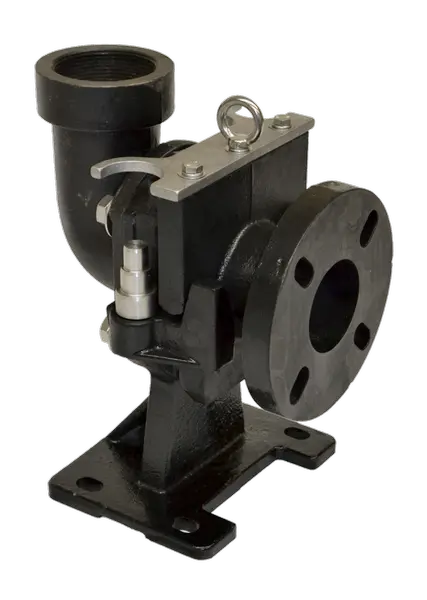

Flo Pro® FPBEA300H 2 1/2" & 3" Horizontal Base Elbow with 3" NPT Discharge Elbow

Part Number: FPBEA300H
The actual product may vary from images shown
$1,340.00
QTY:


FPBEA300H DETAILS

Flo Pro® FPBEA300H 2 1/2" & 3" Horizontal Base Elbow with 3" NPT Discharge Elbow for Guide Rail System

Compatible with ANY 2½" or 3" ANSI Horizontal Discharge Pump

Includes Lift-Out Flange, Pump Adapter and Stainless Steel Hardware


Ductile Iron Base Elbow with 3.00" NPT Threaded Discharge
Accepts Any 2.50" or 3.00" ANSI Flanged Discharge Pump
Stainless Steel Guide Plate and Fasteners
Designed for 3/4", 1" & 1 1/4" Rails
Easy to Install & Remove
Max Pump Weight 400 lbs.

Non-Sparking Option - FPBEA300HX

Main Construction Material: Cast Ductile Iron


Material Composition
  • Base Elbow: 65-45-12 Cast Ductile Iron
  • Lift-Out Flange: 65-45-12 Cast Ductile Iron
  • Lower Guide Plate: 304 Stainless Steel
  • Fasteners: 304 Stainless Steel

Pump Connection: 2 1/2" or 3"ANSI
3" NPT
Acceptable Guide Rail Size: 3/4" or 1" or 1 1/4"
Inlet Size: 3

FPBEA300H FEATURES
  • Constructed from Ductile Iron
  • Powder Coated for Corrosion Resistance
  • Slotted Flange Accepts 2 1/2" or 3" ANSI Pump Connections
  • Stainless Lift-out Plate and Eyebolt Included

FPBEA300H SPECS

  • Part Type: Accessory
  • Brand: FLO PRO®
  • Part Sub-Type: Base Elbow, Horizontal
  • Main Material: Cast Ductile Iron
  • InLet Connection Size: 3
  • Max Pump WeIght: 400
  • Shipping Weight LBS: 76
  • Shipping Length IN: 40
  • Shipping Width IN: 10
  • Shipping Height IN: 10
  • SKU: FPBEA300HSP
  • MPN: FPBEA300H
