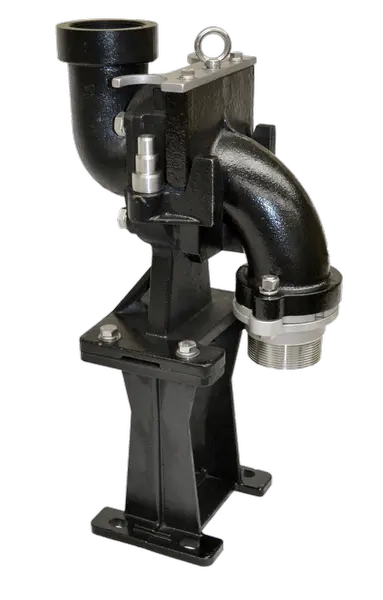

Flo Pro® FPBEA300V 3" Vertical Base Elbow with 3" NPT Discharge Elbow

Part Number: FPBEA300V
The actual product may vary from images shown
$1,430.00
QTY:


FPBEA300V DETAILS

Flo Pro® FPBEA300V 3" Vertical Base Elbow with 3" NPT Discharge Elbow for Guide Rail System

Compatible with ANY 3" NPT Vertical Discharge Pump

Includes Lift-Out Flange, Pump Adapter and Stainless Steel Hardware


Ductile Iron Base Elbow with 3.00" NPT Threaded Discharge
3.00" NPT Stainless STEEL PUMP® Adapter
Stainless Steel Guide Plate and Fasteners
Designed for 3/4", 1" & 1 1/4" Rails
Easy to Install & Remove
Max Pump Weight 400 lbs.

Non-Sparking Option - FPBEA300VX

Main Construction Material: Cast Ductile Iron


Material Composition
  • Base Elbow: 65-45-12 Cast Ductile Iron
  • Lift-Out Flange: 65-45-12 Cast Ductile Iron
  • Pump Adapter: Cast 304 Stainless Steel
  • Lower Guide Plate: 304 Stainless Steel
  • Fasteners: 304 Stainless Steel

Pump Connection: 3" NPT
3" NPT
Acceptable Guide Rail Size: 3/4", 1" or 1 1/4"
Inlet Size: 3

FPBEA300V FEATURES
  • Constructed from Ductile Iron
  • Flange Accepts 2" or 3" NPT Pump Connections
  • Lift-Out and Pump Adapter Have BUNA-N O-Ring Seal
  • Powder Coated for Corrosion Resistance
  • Stainless Lift-out Plate and Eyebolt Included

FPBEA300V SPECS

  • Part Type: Accessory
  • Brand: FLO PRO®
  • Part Sub-Type: Base Elbow, Vertical
  • Main Material: Cast Ductile Iron
  • InLet Connection Size: 3
  • Max Pump WeIght: 400
  • Shipping Weight LBS: 81
  • Shipping Length IN: 24
  • Shipping Width IN: 18
  • Shipping Height IN: 36
  • SKU: FPBEA300VSP
  • MPN: FPBEA300V
