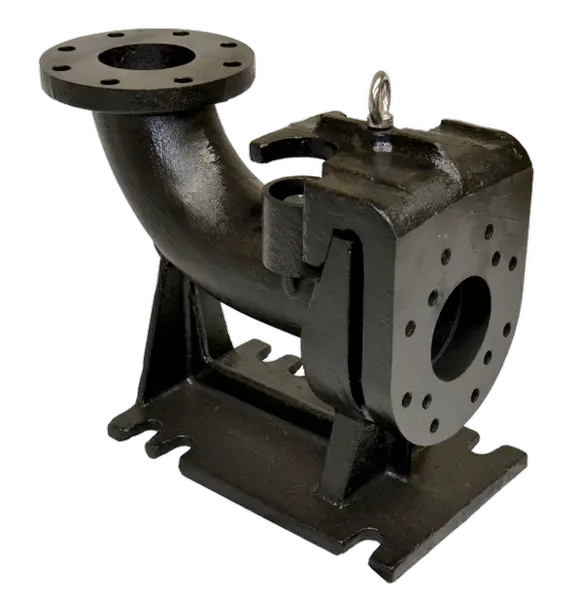

Flo Pro® FPBEA400 4" Base Elbow (Flygt Compatible) 3" & 4" ANSI Double Tapped Flange

Part Number: FPBEA400
The actual product may vary from images shown
$1,910.00
QTY:


FPBEA400 DETAILS

Flo Pro® FPBEA400 4" Base Elbow (Flygt Compatible) 3" & 4" ANSI Double Tapped Flange for Guide Rail System

Comes standard with stainless steel sealing ring for metal-to-metal seal

Includes Lift-Out Flange, Pump Adapter and Stainless Steel Hardware


  • Tapped Flange Fits Both 3" & 4" Horizontal Discharge Pumps
  • Design is Compatible with Flygt
  • 100% Ductile Iron, Powder Coated to Protect Against Corrosion
  • Accepts 1.50" or 2.00" Guide Rails
  • 4" Discharge Flange
  • Comes with Stainless Steel Sealing Ring for Metal-To-Metal Seal
                   Note:  Can be Removed for a 4" Rubber Gasket (Sold Separately FPFG400)
  • Max Pump Weight 2,000 lbs

         FPBEA400X - Non-Sparking Option



Main Construction Material: Cast Ductile Iron


Material Composition
  • Base Elbow: 65-45-12 Cast Ductile Iron
  • Lift-Out Flange: 65-45-12 Cast Ductile Iron
  • Lower Guide Plate: 304 Stainless Steel
  • Hardware: 304 Stainless Steel

Pump Connection: 3" or 4" ANSI
4" ANSI
Acceptable Guide Rail Size: 1 1/2" or 2"
Inlet Size: 4

FPBEA400 FEATURES
  • Constructed from Ductile Iron
  • Flygt Compatible
  • Metal-To-Metal Seal with Stainless Steel Sealing Ring
  • Powder Coated for Corrosion Resistance

FPBEA400 SPECS

  • Part Type: Accessory
  • Brand: FLO PRO®
  • Part Sub-Type: Base Elbow
  • Main Material: Cast Ductile Iron
  • InLet Connection Size: 4
  • Max Pump WeIght: 2000
  • Shipping Weight LBS: 156
  • Shipping Length IN: 48
  • Shipping Width IN: 24
  • Shipping Height IN: 21
  • SKU: FPBEA400SP
  • MPN: FPBEA400
