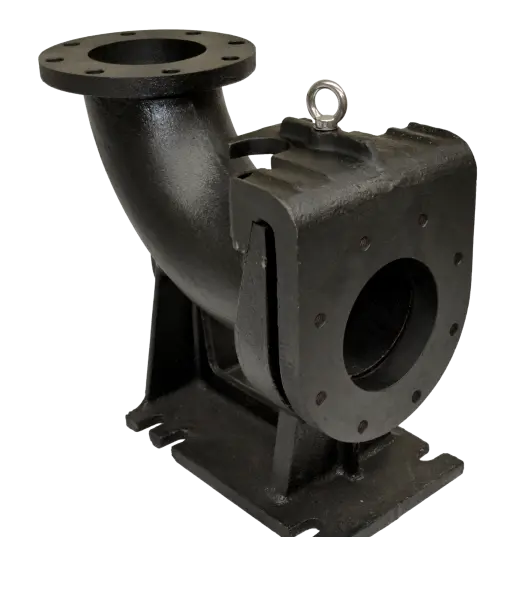

Flo Pro® FPBEA600 6" Base Elbow (Flygt Compatible) 4" & 6" ANSI Double Tapped Flange

Part Number: FPBEA600
The actual product may vary from images shown
$2,281.00
QTY:


FPBEA600 DETAILS

Flo Pro® FPBEA600 6" Base Elbow (Flygt Compatible) 4" & 6" ANSI Double Tapped Flange for Guide Rail System

Comes standard with stainless steel sealing ring for metal-to-metal seal

Includes Lift-Out Flange, Pump Adapter and Stainless Steel Hardware


  • Tapped Flange Fits 6" Horizontal Discharge Pumps
  • Design is Compatible with Flygt
  • Ductile Iron, Powder Coated to Protect Against Corrosion
  • Accepts 2" Guide Rails
  • 6" Discharge Flange
  • Comes with Stainless Steel Sealing Ring for Metal-To-Metal Seal
                 Note:  Can be Removed for a 6" Rubber Gasket Seal (Sold Separately FPFG600)
  • Max Pump Weight 2,000 lbs

          FPBEA600X - Non-Sparking Option

Main Construction Material: Cast Ductile Iron


Material Composition
  • Base Elbow: 65-45-12 Cast Ductile Iron
  • Lift-Out Flange: 65-45-12 Cast Ductile Iron
  • Lower Guide Plate: 304 Stainless Steel
  • Hardware: 304 Stainless Steel

Pump Connection: 4" or 6" ANSI
6" ANSI
Acceptable Guide Rail Size: 2"
Inlet Size: 6

FPBEA600 FEATURES
  • Constructed from Ductile Iron
  • Flygt Compatible
  • Metal-To-Metal Seal with Stainless Steel Sealing Ring
  • Powder Coated for Corrosion Resistance

FPBEA600 SPECS

  • Part Type: Accessory
  • Brand: FLO PRO®
  • Part Sub-Type: Base Elbow
  • Main Material: Cast Ductile Iron
  • InLet Connection Size: 6
  • Max Pump WeIght: 2000
  • Shipping Weight LBS: 191
  • Shipping Length IN: 48
  • Shipping Width IN: 24
  • Shipping Height IN: 22
  • SKU: FPBEA600SP
  • MPN: FPBEA600
