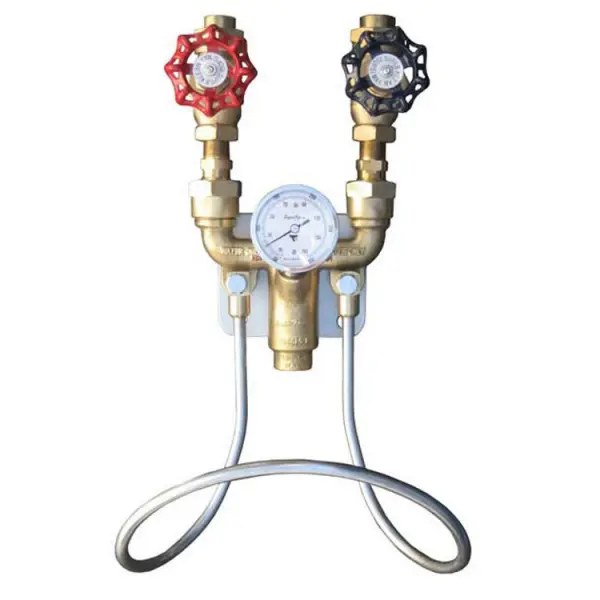

SuperKlean® 3600M-B-T Hot & Cold Water Mixing Unit with Temp. Gauge, Brass

Part Number: 3600M-B-T
The actual product may vary from images shown
$767.97
QTY:


3600M-B-T DETAILS

SuperKlean® 3600M-B-T Hot & Cold Water Mixing Unit with Temp. Gauge, Brass

SuperKlean®'s hot &cold water mixing unit was specifically designed for thoroughly blending hot and cold water instantly by mixing supplied hot water with cold water to achieve required temperature output. The unit uses "Y" style body mechanics with lift check valves and ball joint unions for superior flexibility during installation. SuperKlean®'s inlet center lines have the same dimensions as most of our competitors' units. Our units come with a mounting plate for easy behind the unit cleanup, hose rack for easy user access to the hose, and an optional temperature gauge for accurate temperature readings at outlet.

Includes:

  • (2) Globe valves
  • (2) Check valves
  • (1) Hose rack
  • (1) Mounting bracket
  • (1) Adjustable angle temperature gauge

3600M-B-T FEATURES

  • High quality brass construction for years of dependable service
  • Thoroughly blends hot and cold water instantly to achieve desired temperature output
  • Y style body mechanics with lift check valves and ball joint unions for flexibility during installation
  • Comes with mounting plate with spacers to allow easy cleaning between unit and wall
  • Included hose rack will hold large lengths of hose
  • Included temperature gauge allows precise temperature control
  • Unit features SuperKlean globe valves for precise control of hot and cold water flows
  • 3/4" Female NPT inlets and outlet

3600M-B-T SPECS

  • Part Type: Accessory
  • Brand: SUPERKLEAN®
  • Part Sub-Type:
  • Main Material: Brass
  • Check Valve: 2
  • Connection Size: 0.75
  • Globe Valve: 2
  • Globe Valve Material: Brass/Stainless Steel
  • Hose Rack: Yes
  • Max Pressure:
  • Mixer Body: Brass
  • Working Water Pressure:
  • Shipping Weight LBS: 20.00
  • Shipping Length IN: 30.00
  • Shipping Width IN: 30.00
  • Shipping Height IN: 15.00
  • SKU: SK3600MBTSP
  • MPN: 3600M-B-T
  • Customs Code:
