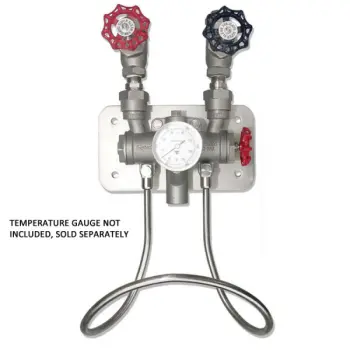

SuperKlean® 8000GM-S-T Steam & Cold Water Mixing Unit with Temp. Gauge, Stainless Steel

Part Number: 8000GM-S-T
The actual product may vary from images shown
$3,332.72
QTY:


8000GM-S-T DETAILS

SuperKlean® 8000GM-S-T Steam & Cold Water Mixing Unit with Temp. Gauge, Stainless Steel

SuperKlean® is proud to introduce the most innovative steam and cold water mixing unit specifically designed to provide safe and efficient means of clean up by producing hot water instantly and economically with little or no maintenance. The DURAMIX 8000 unit operates under a wide range of steam and water pressures without changing internal components. In fact, it is one of the only steam and cold water mixing units in the industry with the ability to operate with as little as 30 PSI of water pressure.

Its strategic dual output design, one at the bottom for a hose and nozzle and one at the top for hard pipe installation, provides the user with the ability to supply two individual terminals with their own hot water supply. For maximum efficiency, the second outlet can be used to feed a secondary source where hot water is needed after the primary outlet has been shut off. This feature drastically reduces energy producing costs, which is good for the bottom line, as the unit is capable of producing hot water for wash down as well as providing a secondary source of hot water for other uses 24 hours per day, 7 days per week.

Our unique internal design does NOT allow live steam to penetrate. If water pressure fails, the Duramix 8000 will automatically close the steam poppet and not allow live steam to pass through our mixing unit, thus making this unit the safest in the market.

Includes:

  • (2) Globe valves
  • (2) Check valves
  • (1) Hose rack
  • (1) Mounting bracket
  • (1) Adjustable angle temperature gauge

8000GM-S-T FEATURES

  • High quality 300 series stainless steel construction for years of dependable service
  • Provides instant hot water by mixing steam and cold water
  • Works under a wide variety of steam and water pressures without changing internal components
  • Can operate with as little as 30 PSI of water pressure
  • Two outlets: One for wash down unit hose and one for hard pipe installation
  • Internal design does not allow live steam to penetrate and exit the unit
  • If water pressure fails the steam poppet automatically closes to increase safety
  • Included temperature gauge allows precise temperature control
  • Working steam pressure: 30-150 PSI (saturated only)
  • Working water pressure: 30-150 PSI
  • 3/4" Female NPT inlets and outlet

8000GM-S-T SPECS

  • Part Type: Accessory
  • Brand: SUPERKLEAN®
  • Part Sub-Type:
  • Main Material: SS
  • Check Valve: 2
  • Connection Size: 0.75
  • Globe Valve: 2
  • Globe Valve Material: SS
  • Hose Rack: Yes
  • Max Pressure: 30-150 PSI / 2.07-10.34 BAR
  • Mixer Body: SS
  • Working Water Pressure: 30-150 PSI / 2.07-10.34 BAR
  • Shipping Weight LBS: 20.00
  • Shipping Length IN: 36.00
  • Shipping Width IN: 36.00
  • Shipping Height IN: 18.00
  • SKU: SK8000GMSTSP
  • MPN: 8000GM-S-T
  • Customs Code:
