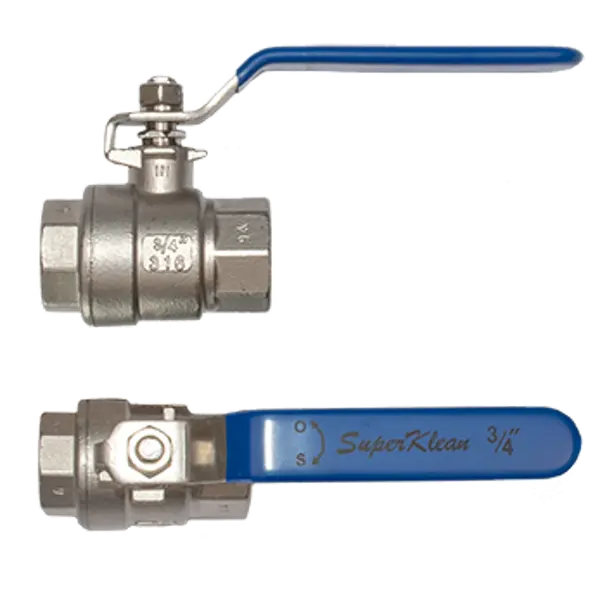

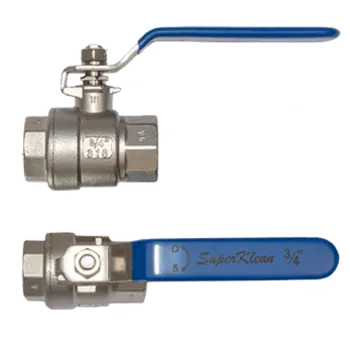

SuperKlean® BALL VALVE-SS-BLUE 3/4" Ball Valve, SS, Blue (600 PSIG WOG-150 PSIG Saturated Steam)

Part Number: BALL VALVE-SS-BLUE
The actual product may vary from images shown
$98.53
QTY:


BALL VALVE-SS-BLUE DETAILS

SuperKlean® BALL VALVE-SS-BLUE 3/4" Ball Valve, Stainless Steel, Blue (600 PSIG WOG-150 PSIG Saturated Steam)

SuperKIean’s 3/4″ stainless steel ball valves give users the ability to shut down water/steam supply lines with a single pull of a lever. These are quarter-turn valves. Its stainless steel construction enables this ball valve to be used with either water, oil, gas, or steam. All stainless steel components are 300 series stainless steel to prevent corrosion. Our 3/4″ ball valve is the most widely used ball valve in the industry. Examples of common applications include wineries, breweries, oil refineries, and chemical processing plants.


Inlet / Outlet Diameter: 3/4″ NPT Ball Valve Body: Stainless Steel Lever and Grip: Stainless Steel with Vinyl Stem Packing: Teflon Stem Bearing: Teflon Ball: Chrome Plated Seats: Teflon Retainer: Brass or Stainless Steel Gland Nut: Brass or Stainless Steel Stem: Brass or Stainless Steel Lever Nut: Stainless Steel Body Seal: Teflon Weight: 1.28 Lbs. Pressure Rating: 600 PSI WOG ·150 PSI STEAM


Supersedes SuperKlean® Part # BALL VALVE-SS

BALL VALVE-SS-BLUE FEATURES
  • Available in brass or stainless steel construction
  • Corrosion Resistant
  • Designed for a variety of industries and environments such as marine, salt water, chemical, food processing
  • Maximum pressure rating is 600 PSI WOG (Water, Oil, Gas)
  • The stainless steel handle is build with a plastic dip which not only offers an easy and secure grip but also protects the user for high temperature transfer to the lever

BALL VALVE-SS-BLUE SPECS

  • Part Type: Part
  • Brand: SUPERKLEAN®
  • Part Sub-Type: Ball Valve
  • Main Material: Stainless Steel
  • Shipping Weight LBS: 1.28
  • Max Pressure: 0
  • Connection Size: 0.75
  • Shipping Length IN: 12
  • Shipping Width IN: 3
  • Shipping Height IN: 3
  • SKU: SKBALLVALVESSBLUESP
  • Check Valve: Stainless Steel
  • MPN: BALL VALVE-SS-BLUE
  • Working Water Pressure:
  • Customs Code:
  • Working Steam Pressure:
  • Mixer Body: Stainless Steel
  • Cover Color:
  • Hose Rack:
  • Max FLow Rate:
