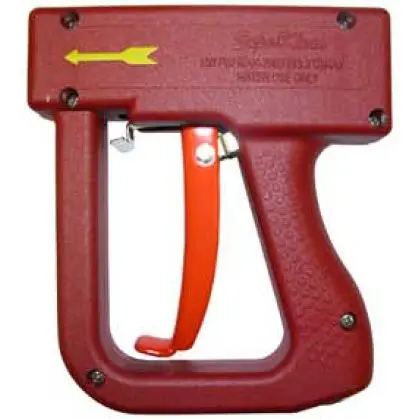

SuperKlean® DH150S-R DuraFlow 300 SS Spray Nozzle- Red Cover

Part Number: SK-DH150S-R
The actual product may vary from images shown
$203.00
QTY:


SK-DH150S-R DETAILS

SuperKlean® DH150S-R DuraFlow 300 SS Spray Nozzle- Red Cover

SuperKlean®'s new DuraFlow spray nozzle was specifically designed to prevent accidental spray. Its unique oover design is not only durable, but also prevents the front mounted levers, which reduce hand fatigue and offer smooth lever action, from being accidentally activated when the nozzle is dropped. The new DuraFlow spray nozzles also come with a trigger locking mechanism for a safe and secure method of maintaining the nozzle open at any spray pattern.

Variable spray patterns, adjustable from fan spray to solid stream, is one of the many features offered by the new SuperKlean® DuraFlow spray nozzle. Water conservation is assured upon release of lever by the drip-free automatic shutoff feature.

SuperKlean® DuraFlow spray nozzles are available in 300 Series Stainless Steel and weigh a total of 1.53 Lbs.

Standard Features:

  • Heavy duty, corrosion resistant 300 series stainless steel construction
  • Ergonomic design
    • Reduced hand fatigue
  • Trigger guard prevents accidental discharge
  • Body & trigger cover protect hand from high temperature
  • Variable spray patterns with trigger lock
    • Wide coverage fan pattern
    • Narrow, powerful solid stream pattern
    • And anywhere in between!
    • Trigger lock maintains flow at any spray pattern
  • Max pressure: 150 PSI
  • Max temperature: 200 F
  • 1/2" Female NPT Inlet

Standard Inlet Pressure Flow Rates:

  • @ 25 PSIG - 2.93 GPM
  • @ 50 PSIG - 3.86 GPM
  • @ 75 PSIG - 4.91 GPM
  • @ 100 PSIG - 5.78 GPM
  • @ 125 PSIG - 6.71 GPM
  • @ 150 PSIG - 7.19 GPM
  • (These flow rates can be acheived with the purchase of a flow restictor adapter Part# 8-FR-BSP or 8-FR-NPT. High Flow Inlet Pressure Flow Rates shown on specs tab)
Springer Pumps® offers the full range of SuperKlean® products, including Steam & Cold Water Mixers, Hot & Cold Water Mixers, Spray Wands, Hose Racks and more...

Don't forget an adapter to ensure proper connection to you hose!

SK-DH150S-R FEATURES
  • Prevents accidental spray with enclosed trigger lever

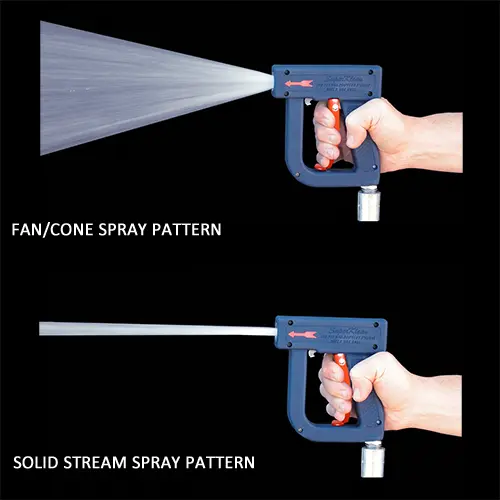

  • Variable spray pattern from a wide coverage fan to a powerful, solid stream
  • Smooth lever action for precise spray pattern control and reduced hand fatigue
  • Trigger lock allows spraying without constant squeezing of the trigger which further reduces hand fatigue
  • Drip free, automatic shutoff feature
  • 300 Series Stainless Steel body, glass-filled nylon covers
  • 3 foot and 1.5 foot Nozzle Wands Available with quick disconnect inlets
  • Liquid Dispensing Bottle with quick disconnect spray tip available to safely dispense sanitizing liquids and other chemicals directly through the Dura-Flow Nozzle
  • Available in multiple colors for easy identification of nozzles
  • 1/2" female NPT inlet
  • Swivel adapters available for hose barb, garden hose thread and male NPT
  • Easily repairable and repair parts fit competitors similar models
  • Maximum pressure: 150 PSI
  • Maximum temperature: 200 F
  • Not for use with steam

SK-DH150S-R SPECS

  • Part Type: Part
  • Brand: SUPERKLEAN®
  • Part Sub-Type: Nozzle, Spray
  • Main Material: 300SS
  • Connection Size: 0.5
  • Max Pressure: 0
  • Cover Color: Red
  • Shipping Weight LBS: 1.53
  • Max FLow Rate:
  • Shipping Length IN: 8
  • Check Valve:
  • Shipping Width IN: 8
  • Working Water Pressure:
  • Shipping Height IN: 8
  • Working Steam Pressure:
  • SKU: SKDH150SRSP
  • Mixer Body:
  • MPN: DH150S-R
  • Hose Rack:
  • Customs Code:
