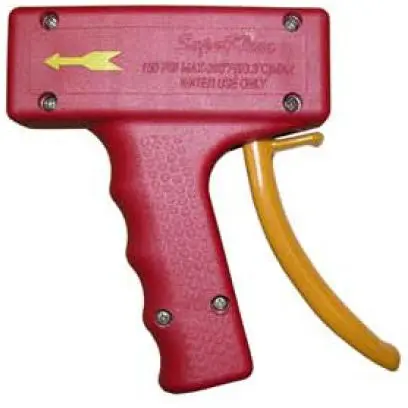

SuperKlean® DM150S-R DuraFlow "Mini" 300 SS Spray Nozzle- Red Cover

SuperKlean® DM150S-R DuraFlow "Mini" 300 SS Spray Nozzle- Red Cover

SuperKlean®'s new DuraFlow "Mini" spray nozzle was specifically designed as an industriail "LIGHlWEIGHT" spray nozzle with heavyweight performance. Its unique design allows the convenience of approximately half of the weight of its bigger brother, the high flow DuraFlow nozzle. Its cover design is not only durable, but also protects the user from hot surfaces produced by high temperature washdown applications. The DuraFlow "Mini" reduces hand fatigue and offers smooth lever action.

Variable spray patterns, adjustable from fan spray to solid stream, is one of the many features offered by the new SuperKlean® DuraFlow "Mini" spray nozzle. Water conservation is assured upon release of lever by the drip-tree automatic shutoff feature.

SuperKlean® DuraFlow "Mini" spray nozzles are available in 300 Series Stainless Steel and weigh approximately 0.77 Lbs.

Standard Features:

• Heavy duty, corrosion resistant 300 series stainless steel construction
• Ergonomic design
  • Reduced hand fatigue
• Body & trigger cover protect hand from high temperature
• Variable spray patterns with trigger lock
  • Wide coverage fan pattern
  • Narrow, powerful solid stream pattern
  • And anywhere in between!
• Max pressure: 150 PSI
• Max temperature: 200 F
• 1/2" Female NPT Inlet

Standard Inlet Pressure Flow Rates:

• @ 25 PSIG - 2.93 GPM
• @ 50 PSIG - 3.86 GPM
• @ 75 PSIG - 4.91 GPM
• @ 100 PSIG - 5.78 GPM
• @ 125 PSIG - 6.71 GPM
• @ 150 PSIG - 7.19 GPM
• (These flow rates can be acheived with the purchase of a flow restictor adapter Part# 8-FR-BSP or 8-FR-NPT. High Flow Inlet Pressure Flow Rates shown on specs tab)

Springer Pumps® offers the full range of SuperKlean® products, including Steam & Cold Water Mixers, Hot & Cold Water Mixers, Spray Wands, Hose Racks and more...

Don't forget an adapter to ensure proper connection to you hose!
