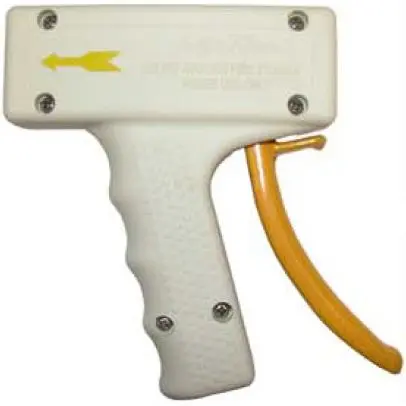

SuperKlean® DM150S-W DuraFlow "Mini" 300 SS Spray Nozzle- White Cover

Part Number: SK-DM150S-W
The actual product may vary from images shown
$116.00
QTY:


SK-DM150S-W DETAILS

SuperKlean® DM150S-W DuraFlow "Mini" 300 SS Spray Nozzle- White Cover

SuperKlean®'s new DuraFlow "Mini" spray nozzle was specifically designed as an industriail "LIGHlWEIGHT" spray nozzle with heavyweight performance. Its unique design allows the convenience of approximately half of the weight of its bigger brother, the high flow DuraFlow nozzle. Its cover design is not only durable, but also protects the user from hot surfaces produced by high temperature washdown applications. The DuraFlow "Mini" reduces hand fatigue and offers smooth lever action.

Variable spray patterns, adjustable from fan spray to solid stream, is one of the many features offered by the new SuperKlean® DuraFlow "Mini" spray nozzle. Water conservation is assured upon release of lever by the drip-tree automatic shutoff feature.

SuperKlean® DuraFlow "Mini" spray nozzles are available in 300 Series Stainless Steel and weigh approximately 0.77 Lbs.

Standard Features:

  • Heavy duty, corrosion resistant 300 series stainless steel construction
  • Ergonomic design
    • Reduced hand fatigue
  • Body & trigger cover protect hand from high temperature
  • Variable spray patterns with trigger lock
    • Wide coverage fan pattern
    • Narrow, powerful solid stream pattern
    • And anywhere in between!
  • Max pressure: 150 PSI
  • Max temperature: 200 F
  • 1/2" Female NPT Inlet

Standard Inlet Pressure Flow Rates:

  • @ 25 PSIG - 2.93 GPM
  • @ 50 PSIG - 3.86 GPM
  • @ 75 PSIG - 4.91 GPM
  • @ 100 PSIG - 5.78 GPM
  • @ 125 PSIG - 6.71 GPM
  • @ 150 PSIG - 7.19 GPM
  • (These flow rates can be acheived with the purchase of a flow restictor adapter Part# 8-FR-BSP or 8-FR-NPT. High Flow Inlet Pressure Flow Rates shown on specs tab)
Springer Pumps® offers the full range of SuperKlean® products, including Steam & Cold Water Mixers, Hot & Cold Water Mixers, Spray Wands, Hose Racks and more...

Don't forget an adapter to ensure proper connection to you hose!

SK-DM150S-W FEATURES

  • The same performance as Dura-Flow nozzles in a smaller, light weight package to limit arm and hand fatigue even further!
  • Ergonomic, rear mounted lever reduces hand fatigue
  • Variable spray pattern from a wide coverage fan to a powerful, solid stream
  • Smooth lever action for precise spray pattern control and reduced hand fatigue
  • Drip free, automatic shutoff feature
  • 300 Series Stainless Steel body, glass-filled nylon covers
  • 3 foot and 1.5 foot Nozzle Wands Available with quick disconnect inlets
  • Liquid Dispensing Bottle with quick disconnect spray tip available to safely dispense sanitizing liquids and other chemicals directly through the Dura-Flow Nozzle
  • Available in multiple colors for easy identification of nozzles
  • 1/2" female NPT inlet
  • Swivel adapters available for hose barb, garden hose thread and male NPT
  • Easily repairable and repair parts fit competitors similar models
  • Maximum pressure: 150 PSI
  • Maximum temperature: 200 F
  • Not for use with steam

SK-DM150S-W SPECS

  • Part Type: Part
  • Brand: SUPERKLEAN®
  • Part Sub-Type: Nozzle, Spray
  • Main Material: 300SS
  • Connection Size: 0.5
  • Max Pressure: 0
  • Cover Color: White
  • Shipping Weight LBS: 0.77
  • Max FLow Rate:
  • Shipping Length IN: 6
  • Check Valve:
  • Shipping Width IN: 6
  • Working Water Pressure:
  • Shipping Height IN: 6
  • Working Steam Pressure:
  • SKU: SKDM150SWSP
  • Mixer Body:
  • MPN: DM150S-W
  • Hose Rack:
  • Customs Code:
