Nomad® 07-2261 1/4" NPT PWR-FLO™ AODD Pump, Polypropylene w/ PTFE (with Neoprene back-up) Diaphragm

Part Number: 132036

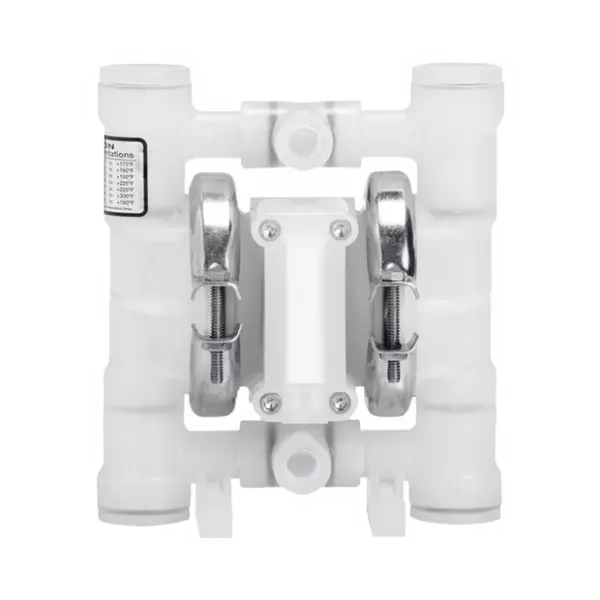

The actual product may vary from images shown
$532.93
QTY:


132036 DETAILS

Nomad® 07-2261 1/4" NPT PWR-FLO™ AODD Pump, Polypropylene w/ PTFE (with Neoprene back-up) Diaphragm

The PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene. Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design". Model: NPF07/PPPP/TF//TF/PTV/N/C Porting Position: Center Ported

  • Wetted Material: Polypropylene
  • Center Block: Polypropylene
  • Air Chamber: Polypropylene
  • Air Valve: Polypropylene
  • Diaphragm: PTFE (with Neoprene back-up)
  • Ball: PTFE (with Neoprene back-up)
  • Connection Type: NPT
  • Clamped

132036 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

132036 SPECS

  • Pump Type: PWR-FLO NPF07
  • Brand: NOMAD®
  • Wetted Parts: Polypropylene
  • Non-Wetted Material:
  • Air Inlet Size: 0.125
  • Air Consumption:
  • Max Air Inlet Pressure: 125 PSIG
  • Air Valve Material: Polypropylene
  • Air Inlet Connection Type:
  • Ball Material: PTFE (with Neoprene back-up)
  • Center Block Material: Polypropylene
  • Connection Style:
  • ATEX:
  • Diaphragm Material: PTFE (with Neoprene back-up)
  • Displacement per Stroke (gal): 0.01
  • Elastomers: Viton Encapsulated, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
  • Fittings:
  • Inlet Size: 0.25
  • Discharge Pressure:
  • Inlet Connection Type: NPT
  • Max Flow Rate (GPM): 4.8
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.015625
  • Model #: NPF07/PPPP/TF//TF/PTV/N/C
  • Outlet Size: 0.25
  • Main Material: Polypropylene
  • Outlet Connection Type: NPT
  • Porting Position: Center Ported
  • Max Discharge Pressure:
  • Valve Balls Material: PTFE (with Neoprene back-up)
  • Valve Seat Material: Polypropylene
  • Valve Seat O-Ring: Viton Encapsulated
  • Shipping Weight LBS: 4.00
  • Shipping Length IN: 5.80
  • Shipping Width IN: 4.50
  • Shipping Height IN: 5.80
  • SKU: NM072261SP
  • Seal Material:
  • MPN: 07-2261
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 8413.50.00
