Nomad® 07-2761 1/4 PWR-FLO™ AODD Pump, SS PTFE(w/ Neo back-up) Diaphragms & BSP Ports

Part Number: 314657

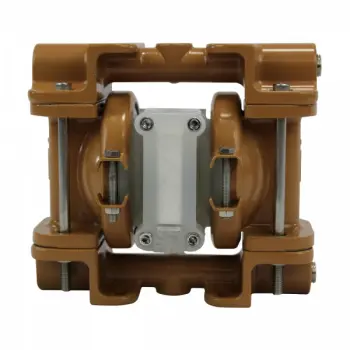

The actual product may vary from images shown
$1,030.72
QTY:


314657 DETAILS

Nomad® 07-2761 1/4 PWR-FLO™ AODD Pump, SS PTFE(w/ Neo back-up) Diaphragms & BSP Ports
The Nomad®™ low cost, high quality PWR-FLO™ air operated double diaphram pumps.
Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design"

PWR-FLO™™ asymmetrical spool design (ASD) features an efficient air system. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications.
The air valve and center section is made of chemically resistant polypropylene.
Model: NPF07/SPPP/TF/TF/STF/B/C

  • 0.25" Model
  • Connection: BSP
  • Wet End Material: Stainless Steel
  • Air Chamber: Polypropylene

314657 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

314657 SPECS

  • Pump Type: PWR-FLO NPF07
  • Brand: NOMAD®
  • Wetted Parts: Stainless Steel
  • Non-Wetted Material: Polypropylene
  • Air Inlet Size: 0.125
  • Air Consumption:
  • Max Air Inlet Pressure:
  • Air Valve Material: Polypropylene
  • Air Inlet Connection Type:
  • Ball Material: PTFE
  • Center Block Material: Polypropylene
  • Connection Style: Clamped
  • ATEX:
  • Diaphragm Material: PTFE(with Neoprene back-up)
  • Displacement per Stroke (gal): 0.01
  • Elastomers: PTFE, PTFE, PTFE
  • Fittings: Clamped
  • Inlet Size: 0.25
  • Discharge Pressure:
  • Inlet Connection Type: BSP
  • Max Flow Rate (GPM): 5
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.015625
  • Model #: NPF07/SPPP/TF/TF/STF/B/C
  • Outlet Size: 0.25
  • Main Material: Stainless Steel
  • Outlet Connection Type: BSP
  • Porting Position:
  • Max Discharge Pressure:
  • Valve Balls Material: PTFE
  • Valve Seat Material: Stainless Steel
  • Valve Seat O-Ring: PTFE
  • Shipping Weight LBS: 8.90
  • Shipping Length IN: 6.50
  • Shipping Width IN: 4.50
  • Shipping Height IN: 5.80
  • SKU: NM072761SP
  • Seal Material:
  • MPN: 07-2761
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
