Nomad® 25-901268 1" Polypropylene Pwr-Flo™ AODD Pump, Viton®/FKM Diaphragm; Model Code NPF25A/PPPP/VT/TF/PTF/FL/B

Part Number: 25-901268

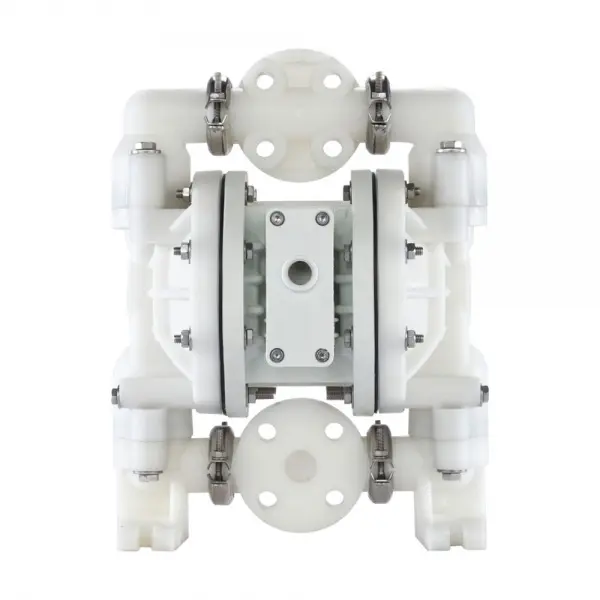

The actual product may vary from images shown
$1,751.88
QTY:


25-901268 DETAILS

Nomad® 25-901268 1" Polypropylene Pwr-Flo™ AODD Pump, Viton®/FKM Diaphragm

Model: NPF25A/PPPP/VT/TF/PTF/FL/B
Similar and Comparable to ARO® Syle Specialty Pumps

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

  • Wetted End Material: Polypropylene
  • Air Chamber Polypropylene
  • Center Block: Polypropylene
  • Air Valve: Polypropylene
  • Valve Balls: PTFE
  • Valve Seats: Polypropylene
  • O-Ring Material: PTFE
  • Connection: 1 Inch Flange, Bolted

Model Code NPF25A/PPPP/VT/TF/PTF/FL/B

25-901268 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

25-901268 SPECS

  • Pump Type: PWR-FLO NPF25A
  • Brand: NOMAD®
  • Wetted Parts: Polypropylene
  • Non-Wetted Material: Polypropylene
  • Air Inlet Size: 0.25
  • Air Consumption:
  • Air Valve Material: Polypropylene
  • Max Air Inlet Pressure: 125
  • Ball Material:
  • Air Inlet Connection Type: Flange
  • Connection Style:
  • Center Block Material:
  • ATEX:
  • Diaphragm Material: Viton®/FKM
  • Elastomers: PTFE, PTFE
  • Fittings: Bolted
  • Displacement per Stroke (gal): 0.09
  • Inlet Size: 1
  • Discharge Pressure:
  • Inlet Connection Type:
  • Max Delivered Pressure: 0
  • Main Material:
  • Max Solids Size: 0.125
  • Model #: NPF25A/PPPP/VT/TF/PTF/FL/B
  • Max Flow Rate (GPM): 34
  • Outlet Size: 1
  • Outlet Connection Type: Flange
  • Porting Position: Center Port Flanged
  • Max Discharge Pressure:
  • Valve Balls Material: PTFE
  • Valve Seat O-Ring: PTFE
  • Shipping Weight LBS: 22.00
  • Shipping Length IN: 16.00
  • Shipping Width IN: 8.06
  • Valve Seat Material: Polypropylene
  • Shipping Height IN: 16.00
  • SKU: NM25901268SP
  • Seal Material:
  • MPN: 25-901268
  • Customs Code: Schedule B Code 8413.50.00.50
