Nomad® 250-1661 1" Aluminum Pwr-Flo™ AODD Pump, PTFE Neoprene back-up Diaphragm

Part Number: 250-1661

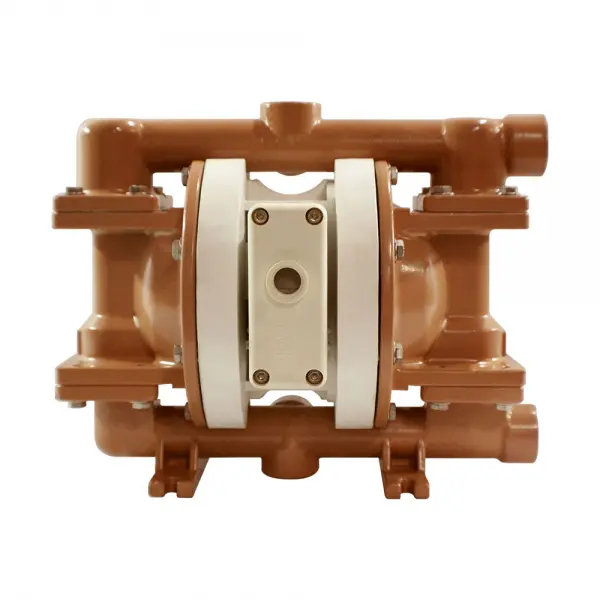

The actual product may vary from images shown
$1,415.65
QTY:


250-1661 DETAILS

Nomad® 250-1661 1" Aluminum Pwr-Flo™ AODD Pump, PTFE Neoprene back-up Diaphragm

Model: NPF250/APPP/TF/TF/ATF/N/B
Similar and Comparable to Wilden® Standard P Series

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

  • Wetted End Material: Aluminum
  • Air Chamber Polypropylene
  • Center Block: Polypropylene
  • Air Valve: Polypropylene
  • Valve Balls: PTFE
  • Valve Seats: Aluminum
  • O-Ring Material: PTFE
  • Connection: 1 Inch NPT, Bolted

Model Code NPF250/APPP/TF/TF/ATF/N/B

250-1661 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

250-1661 SPECS

  • Pump Type: PWR-FLO NPF250
  • Brand: NOMAD®
  • Wetted Parts: Aluminum
  • Non-Wetted Material: Polypropylene
  • Air Inlet Size: 0.25
  • Air Consumption:
  • Air Valve Material: Polypropylene
  • Max Air Inlet Pressure: 125
  • Ball Material:
  • Air Inlet Connection Type: NPT
  • Connection Style:
  • Center Block Material:
  • ATEX:
  • Diaphragm Material: PTFE Neoprene back-up
  • Elastomers: PTFE, PTFE
  • Fittings: Bolted
  • Displacement per Stroke (gal): 0.08
  • Inlet Size: 1
  • Discharge Pressure:
  • Inlet Connection Type:
  • Max Delivered Pressure: 0
  • Main Material:
  • Max Solids Size: 0.08
  • Model #: NPF250/APPP/TF/TF/ATF/N/B
  • Max Flow Rate (GPM): 56
  • Outlet Size: 1
  • Outlet Connection Type: NPT
  • Porting Position: Side Ported
  • Valve Balls Material: PTFE
  • Max Discharge Pressure:
  • Valve Seat O-Ring: PTFE
  • Shipping Weight LBS: 24.00
  • Shipping Length IN: 14.70
  • Shipping Width IN: 11.30
  • Valve Seat Material: Aluminum
  • Shipping Height IN: 13.50
  • SKU: NM2501661SP
  • Seal Material:
  • MPN: 250-1661
  • Customs Code: Schedule B Code 8413.50.00.50
