Nomad® 40-12671 1 1/2" Polypropylene Pwr-Flo™ AODD Pump, Nordel®/EPDM Diaphragm; Model Code NPF40/PPPP/ND/ND/PTV/FL/B

Part Number: 40-12671

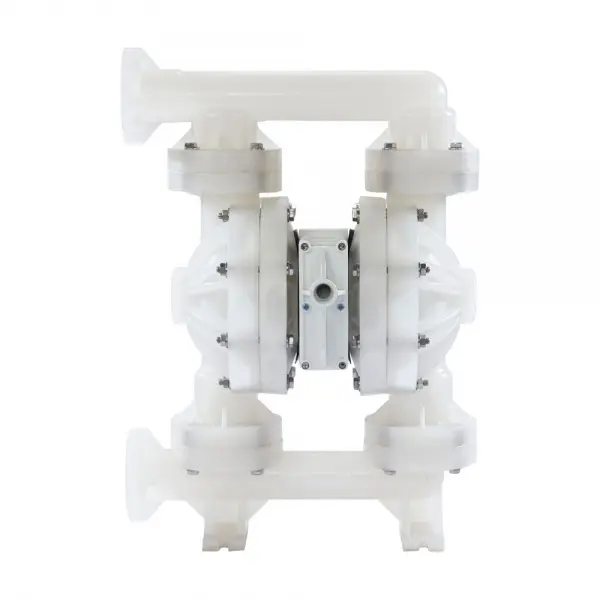

The actual product may vary from images shown
$3,074.61
QTY:


40-12671 DETAILS

Nomad® 40-12671 1 1/2" Polypropylene Pwr-Flo™ AODD Pump, Nordel®/EPDM Diaphragm

Model: NPF40/PPPP/ND/ND/PTV/FL/B
Similar and Comparable to Wilden® Standard P Series

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

  • Wetted End Material: Polypropylene
  • Air Chamber Polypropylene
  • Center Block: Polypropylene
  • Air Valve: Polypropylene
  • Valve Balls: Nordel®/EPDM
  • Valve Seats: Viton® Encapsulated
  • O-Ring Material: Viton® Encapsulated
  • Connection: 1.5 Inch Flange, Bolted

Model Code NPF40/PPPP/ND/ND/PTV/FL/B

40-12671 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

40-12671 SPECS

  • Pump Type: PWR-FLO NPF40
  • Brand: NOMAD®
  • Wetted Parts: Polypropylene
  • Non-Wetted Material: Polypropylene
  • Air Inlet Size: 0.5
  • Air Consumption:
  • Air Valve Material: Polypropylene
  • Max Air Inlet Pressure: 125
  • Ball Material:
  • Air Inlet Connection Type: Flange
  • Connection Style:
  • Center Block Material:
  • ATEX:
  • Diaphragm Material: Nordel®/EPDM
  • Elastomers: Viton® Encapsulated, Nordel®/EPDM
  • Fittings: Bolted
  • Displacement per Stroke (gal): 0.15
  • Inlet Size: 1.5
  • Discharge Pressure:
  • Inlet Connection Type:
  • Max Delivered Pressure: 0
  • Main Material:
  • Max Solids Size: 0.25
  • Model #: NPF40/PPPP/ND/ND/PTV/FL/B

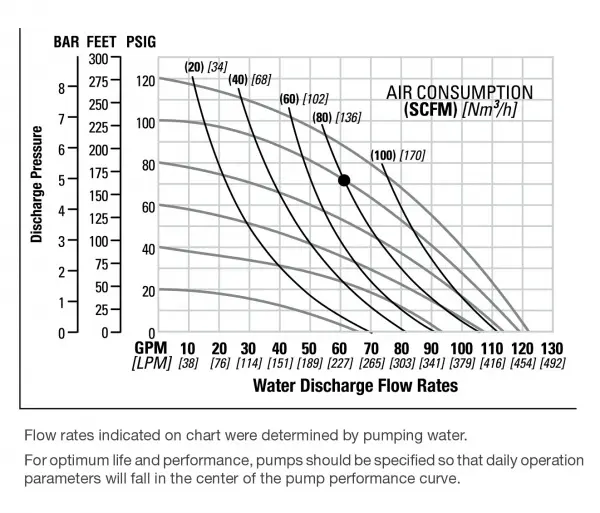

  • Max Flow Rate (GPM): 84
  • Outlet Size: 1.5
  • Outlet Connection Type: Flange
  • Porting Position: side Port Flanged
  • Max Discharge Pressure:
  • Valve Balls Material: Nordel®/EPDM
  • Valve Seat O-Ring: Viton® Encapsulated
  • Shipping Weight LBS: 41.00
  • Shipping Length IN: 11.80
  • Shipping Width IN: 18.80
  • Valve Seat Material: Viton® Encapsulated
  • Shipping Height IN: 26.30
  • SKU: NM4012671SP
  • Seal Material:
  • MPN: 40-12671
  • Customs Code: Schedule B Code 8413.50.00.50
