Nomad® 80-1851 3" Flanged PWR-FLO™ AODD Pump, Stainless Steel w/ PTFE (with Neoprene back-up) Diaphragm

Part Number: 80-1851

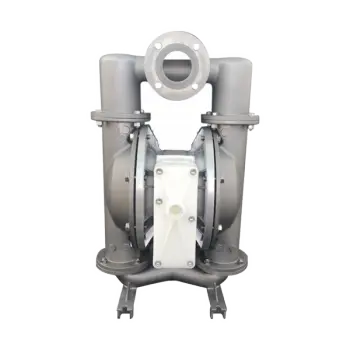

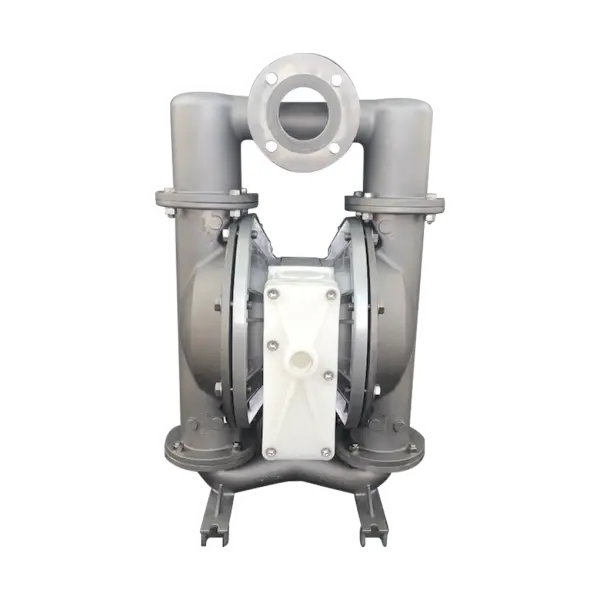

The actual product may vary from images shown
$15,753.59
QTY:


80-1851 DETAILS

Nomad® 80-1851 3" Flanged PWR-FLO™ AODD Pump, Stainless Steel w/ PTFE (with Neoprene back-up) Diaphragm

The PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene. Similar and Comparable to Wilden® Standard P Series "Pro-Flo® Valve Design". Model: NPF80/SAAA/TF/TF/STF/FL/B/X Porting Position: Center Ported

  • Wetted Material: Stainless Steel
  • Center Block: Aluminum
  • Air Chamber: Aluminum
  • Air Valve: Aluminum
  • Diaphragm: PTFE (with Neoprene back-up)
  • Ball: PTFE (with Neoprene back-up)
  • Connection Type: Flanged
  • Bolted
  • ATEX

Model Code NPF80/SAAA/TF/TF/STF/FL/B/X

80-1851 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

80-1851 SPECS

  • Pump Type: PWR-FLO NPF80
  • Brand: NOMAD®
  • Wetted Parts: Stainless Steel
  • Non-Wetted Material:
  • Air Inlet Size: 0
  • Air Consumption:
  • Air Valve Material: Aluminum
  • Max Air Inlet Pressure: 125 PSIG
  • Ball Material: PTFE (with Neoprene back-up)
  • Air Inlet Connection Type:
  • Connection Style:
  • Center Block Material: Aluminum
  • ATEX:
  • Diaphragm Material: PTFE (with Neoprene back-up)
  • Elastomers: PTFE, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
  • Fittings:
  • Displacement per Stroke (gal): 1.29
  • Inlet Size: 3
  • Discharge Pressure:
  • Inlet Connection Type: Flanged
  • Max Delivered Pressure: 0
  • Main Material: Stainless Steel
  • Max Solids Size:
  • Model #: NPF80/SAAA/TF/TF/STF/FL/B/X
  • Max Flow Rate (GPM): 246
  • Outlet Size: 3
  • Outlet Connection Type: Flanged
  • Porting Position: Center Ported
  • Valve Balls Material: PTFE (with Neoprene back-up)
  • Max Discharge Pressure:
  • Valve Seat O-Ring: PTFE
  • Shipping Weight LBS: 187.00
  • Shipping Length IN: 21.30
  • Shipping Width IN: 21.10
  • Valve Seat Material: Stainless Steel
  • Shipping Height IN: 35.20
  • SKU: NM801851SP
  • Seal Material:
  • MPN: 80-1851
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 8413.50.00
