Nomad® 80-25562-28 3" Aluminum Pwr-Flo™ AODD Pump, PTFE-UFI Santoprene® b/u Diaphragm

Part Number: 80-25562-28

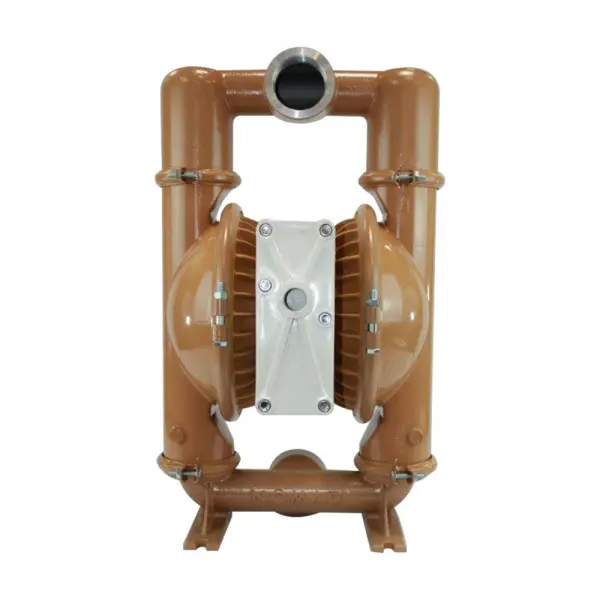

The actual product may vary from images shown
$5,590.82
QTY:


80-25562-28 DETAILS

Nomad® 80-25562-28 3" Aluminum Pwr-Flo™ AODD Pump, PTFE-UFI Santoprene® b/u Diaphragm

Model: NPF80/AAAA/TFF/TF/STF/B/C/X
Similar and Comparable to Wilden® Standard P Series

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

The Nomad® PWR-FLO asymmetrical spool design (ASD) features the most efficient air system available. The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications. The air valve and center section is made of chemically resistant polypropylene.

  • Wetted End Material: Aluminum
  • Air Chamber Aluminum
  • Center Block: Aluminum
  • Air Valve: Aluminum
  • Valve Balls: PTFE
  • Valve Seats: Stainless Steel
  • O-Ring Material: PTFE
  • Connection: 3 Inch BSP, Clamped, ATEX

80-25562-28 FEATURES
  • Drop in replacement for Wilden® AODD pumps of equivalent make and size
  • Air driven double diaphragm pumps handle large solids and slurries
  • PWR-FLO™ asymmetrical spool design (ASD) features an efficient air system
  • The anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications
  • The air valve and center section is made of chemically resistant polypropylene.

80-25562-28 SPECS

  • Pump Type: PWR-FLO NPF80
  • Brand: NOMAD®
  • Wetted Parts: Aluminum
  • Non-Wetted Material: Aluminum
  • Air Inlet Size: 0.75
  • Air Consumption:
  • Max Air Inlet Pressure: 125
  • Air Valve Material: Aluminum
  • Air Inlet Connection Type: BSP
  • Ball Material:
  • Center Block Material:
  • Connection Style:
  • ATEX: ATEX
  • Diaphragm Material: PTFE - UFI Santoprene® back up
  • Displacement per Stroke (gal): 1.49
  • Elastomers: PTFE, PTFE
  • Fittings: Clamped
  • Inlet Size: 3
  • Discharge Pressure:
  • Inlet Connection Type:
  • Max Flow Rate (GPM): 232
  • Max Delivered Pressure: 0
  • Max Solids Size: 0.375
  • Model #: NPF80/AAAA/TFF/TF/STF/B/C/X
  • Outlet Size: 3
  • Main Material:
  • Outlet Connection Type: BSP
  • Porting Position: Center Ported
  • Max Discharge Pressure:
  • Valve Balls Material: PTFE
  • Valve Seat Material: Stainless Steel
  • Valve Seat O-Ring: PTFE
  • Shipping Weight LBS: 132.00
  • Shipping Length IN: 32.40
  • Shipping Width IN: 20.60
  • Shipping Height IN: 32.40
  • SKU: NM802556228SP
  • Seal Material:
  • MPN: 80-25562-28
  • Customs Code: Schedule B Code 8413.50.00.50
