Q-Pumps K6-K+114-CSV-18 QC+ to CB+ 114/214 Sanitary Internal Seal Conversion Kit (K6-K+), 182/184TC Frame

Part Number: K6-K+114-CSV-18

The actual product may vary from images shown
$1,100.52
QTY:


K6-K+114-CSV-18 DETAILS

Q-Pumps K6-K+114-CSV-18 QC+ to CB+ 114/214 Sanitary Internal Seal Conversion Kit (K6-K+), 182/184TC Frame


Applies To: 114/214

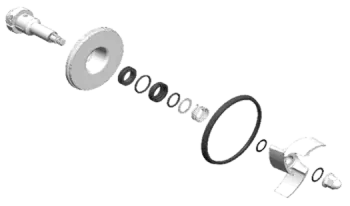

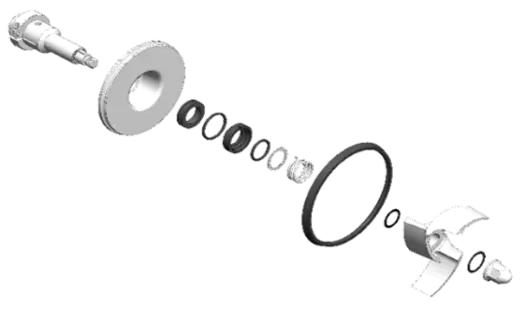

This Q-Pumps QC+ to CB+ (K6-K+) Sanitary Internal Seal Conversion Kit applies to models 114/214 with a frame size 182/184TC. This kit includes stub shaft plus, shaft collar and bolt, backplate, complete seal kit, casing gasket, impeller plus, impeller nut, impeller gaskets and shaft key.

K6-K+114-CSV-18 SPECS

  • Part Type: Kit
  • Brand: Q-PUMPS®
  • Part Sub-Type: Seal Conversion
  • Applies To Pump Models: 114/214
  • Shipping Weight LBS: 1.00
  • Exploded View Item #:
  • Main Material:
  • Shipping Length IN: 12.00
  • Shipping Width IN: 12.00
  • Shipping Height IN: 6.00
  • Elastomers:
  • Shaft Size (In):
  • SKU: QPK6K114CSV18SP
  • Seal Face Material:
  • MPN: K6-K+114-CSV-18
  • Seal Type Code:
  • Motor Frame: 182/184TC
  • Customs Code:
  • Old Part Number:
  • Recommended Quantity(s) Per Pump:
