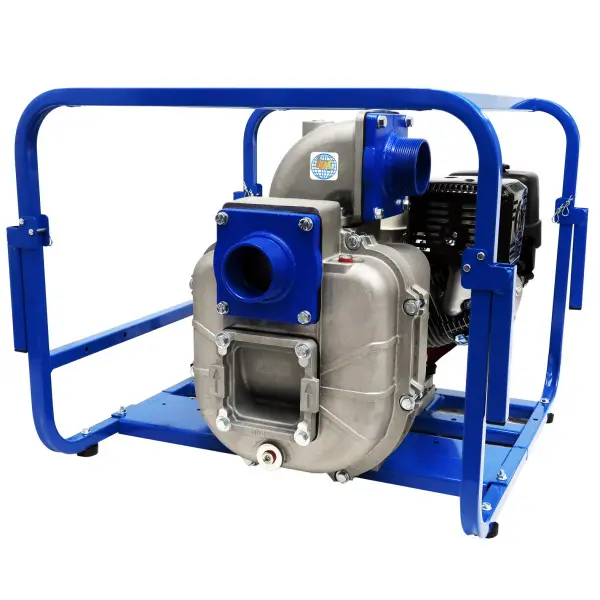

AMT® 3HY13HR 3 Inch NPT Aluminum Engine Driven High Pressure High Flow Pump

Part Number: 3HY13HR
The actual product may vary from images shown
$3,700.50
QTY:


3HY13HR DETAILS

AMT® 3HY13HR 3 Inch NPT Aluminum Engine Driven High Pressure High Flow Pump

The AMT line of Self-Priming High Pressure Pumps, also known as Hydroseeder Pumps, delivers both excellent pressure and flow for many applications including, but not limited to: general dewatering, agricultural spraying, hydroseeding, washdown, fire protection, and irrigation. These single stage centrifugal pumps are sand cast aluminum construction with cast iron wear parts, male NPT ports, and EPDM/EPR Elastomers. They are available with gasoline engines, offered in both 3” and 4” models, and come standard with a heavy duty steel frame, suction strainer, and designed for easy maintenance with servicing tool included.




Cage is included.Horsepower Class: 13VAC at 60Hz: FALSE
Max Head Height:

3HY13HR FEATURES

  • Sand Cast Aluminum Construction with Cast Iron Wear Parts
  • EPDM/EPR Mechanical Seal, O-Rings, and Gaskets
  • 3” or 4” Male NPT Cast Iron Suction & Discharge Ports
  • Convertible High or Low Suction Port for Improved Efficiency Dependent on Self-Priming or Flooded Applications
  • Built-In EPDM Flapper/Check Valve Permits Priming up to 20'
  • Discharge Port Rotates 180° Increments
  • Available with Honda E-Start Gasoline Engine

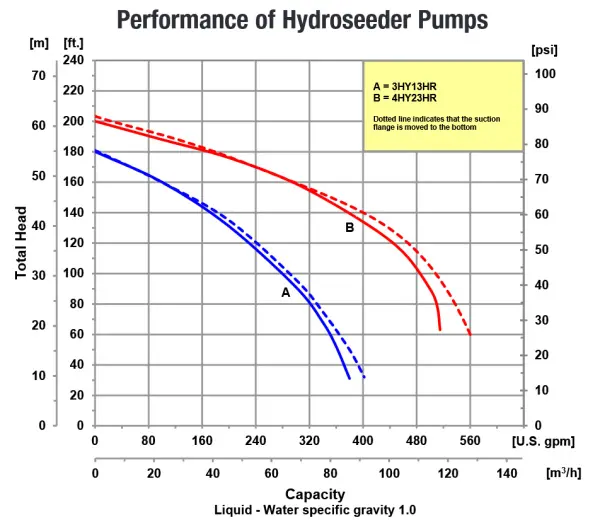

  • Maximum Head up to 202' TDH (87 PSI)
  • Maximum Flow up to 560 GPM
  • Includes Servicing Tool, Suction Strainer, and Heavy Duty Steel Frame with Battery Tray Included

3HY13HR SPECS

  • Pump Type: High Pressure Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 220
  • Shipping Length IN: 31
  • Main Material: Aluminum
  • Shipping Height IN: 25.1
  • SKU: AT3HY13HRSP
  • MPN: 3HY13HR
  • Fuel Tank Capacity: 1.6 Gal 6.1 Ltr, not qt
  • Driver Type: Gasoline Engine
  • Shipping Width IN: 29.5
  • Outlet Size: 3
  • Inlet Size: 3
  • Outlet Connection Type: NPT
  • Run Time: 150.00 min
  • Max FLow Rate: 560 GPM
  • Power: 13

TECHNICAL DOCUMENTS
