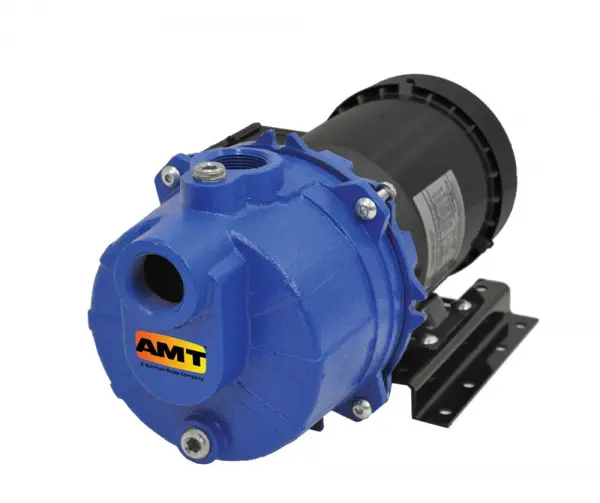

AMT® 1SP05C-1P Self-Priming Centrifugal Pump

Part Number: 1SP05C-1P
The actual product may vary from images shown
$701.25
QTY:


1SP05C-1P DETAILS

AMT® 1SP05C-1P Self-Priming Centrifugal Pump.

AMT® Self-Priming Centrifugal Pumps are designed for industrial and commercial applications requiring high volume liquid transfer, waste water drainage and chemical processing. This pump feature a self-cleaning clog resistant impeller capable of handling up to 1/4" diameter semi-solids. Built-in check valve enables consistent self-priming to 20 feet. Dual volute design reduces radial load on motor.

Features:

  • Cast iron construction
  • Cast iron, self-cleaning, clog resistant impeller
  • Carbon/Ceramic seal with EPDM/EPR elastomers
  • Built-in EPDM/EPR check valve for fast priming to 20 Ft.
  • Easy clean-out with pull from rear design
  • Replaceable volutes
  • Maximum working pressure: 125 PSI
  • Maximum temperature: 180 F
  • NEMA 56J motor stainless steel shaft
  • Designed to handle liquids of specific gravities up to 1.3
Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP.

DO NOT USE WITH PETROLEUM BASED LIQUIDS!
* AMT® 1SP05C-1P

1SP05C-1P FEATURES

  • Cast Iron Construction with Self-Cleaning, Clog Resistant Impeller and 303SS Shaft
  • Carbon/Ceramic EPDM/EPR Mechanical Seal
  • Easy Cleanout with Pull from Rear Design
  • Self-Priming to 20 Ft with Built-In Check Valve with Build-in Check Valve
  • Maximum Solids Size: 1/4"
  • 1/2 HP TEFC (Totally Enclosed, Fan Cooled), Single Phase, 56J Frame Motor

1SP05C-1P SPECS

  • Pump Type: Self-Priming Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 55
  • Shipping Length IN: 18
  • Main Material: Cast Iron
  • Displacement per Stroke (gal):
  • Shipping Height IN: 9.3
  • SKU: AT1SP05C1PSP
  • Engine Type:
  • MPN: 1SP05C-1P
  • Full Load Current:
  • Customs Code: HTS Code 8413702005
    Schedule B Code 8413702005
    ECCN Code EAR99
  • Driver Type: Electric Motor
  • Fuel Tank Capacity:
  • Shipping Width IN: 9.3
  • Outlet Size: 1
  • Inlet Size: 1
  • Outlet Connection Type: FNPT
  • Max FLow Rate: 54 GPM
  • Model #:
  • Motor Frame: 56J
  • Power: 0.5
  • Run Time:
  • Elastomers: EPDM/EPR
  • RPM: 3450
  • Porting Position:
  • Seal Material: Carbon/Ceramic Mechanical Seal, EPDM/EPR Elastomers
  • Max Discharge Pressure: 20.3
  • Max Solids Size: 0.25
  • Inlet Connection Type: FNPT
