AMT® 2AG5FPE 2 Inch NPT Thermoplastic Sel-Priming Engine Driven Dewatering Pump; Can Replace AMT® 2AG5LPE

Part Number: 2AG5FPE
The actual product may vary from images shown
$670.50
QTY:


2AG5FPE DETAILS

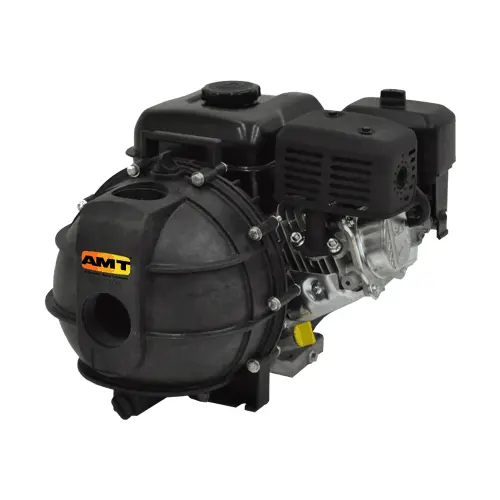

AMT® 2AG5FPE 2 Inch NPT Thermoplastic Sel-Priming Engine Driven Dewatering Pump
Replaces Old AMT Part Number 2AG5LPE

The AMT line of Engine Driven Dewatering pumps offers economy, durability, portability and performance all in one neat package. Ideal for dirty water dewatering, irrigation, spraying, washdown and agricultural applications. Pumps are designed to handle liquids with solids content or dissolved solids and debris. Cast iron pumps feature dual volute design that reduces radial load on engine. Built-in check valve enables constant self-priming to 20 feet. Pump construction materials available in cast iron or corrosive resistant polypropylene components featuring removeable/replaceable volute and impeller. Pumps are available with Honda or CRX Gasoline engines. FKM, EPDM and Silicon Carbide mechanical seal options are available on specific models.



Horsepower Class: 5VAC at 60Hz: FALSE
Max Head Height:
Base and Handle Included: No Base or Handle Included

2AG5FPE FEATURES

  • Optional Seals Available
  • 2˝ NPT Port Size
  • Self-Priming up to 20 Ft.
  • Semi-Open, Clog Resistant Impeller
  • Solids Handling and Dirty Water Design
  • Engine Options: Honda or CRX Gasoline
  • Carry Handle Included
  • Heavy Duty Steel Base Installed on Cast Iron Models
  • Built-in Check Valve

2AG5FPE SPECS

  • Pump Type: Dewatering Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 45
  • Shipping Length IN: 18.8
  • Main Material: Thermoplastic
  • Shipping Height IN: 12.7
  • SKU: AT2AG5FPESP
  • MPN: 2AG5FPE
  • Driver Type: Gasoline Engine
  • Fuel Tank Capacity: 0.87 Gal 3.3 Ltr, not qt
  • Shipping Width IN: 15.6
  • Outlet Size: 2
  • Inlet Size: 2
  • Outlet Connection Type: NPT
  • Power: 5
  • Run Time: 120.00 min
  • Max Solids Size: 0.4375
