AMT® 3894-98 Self-Priming Centrifugal Pump

Part Number: 3894-98
The actual product may vary from images shown
$1,617.75
QTY:


3894-98 DETAILS

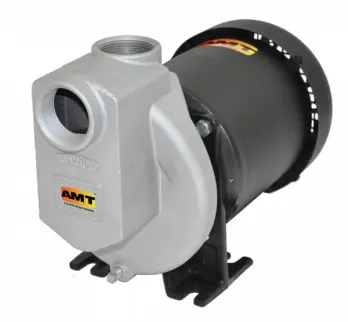

AMT® 3894-98 Self-Priming Centrifugal Pump.

AMT® self-priming centrifugal pumps are designed for a wide range of applications including chemical processes, waste water treatment and pumping agriculture fertilizers/fumigants. All models are equipped with a Totally Enclosed Fan Cooled (TEFC) motor. Pumps are self-priming to 6 feet and feature a dual volute design to reduce radial load on motor. Pumps are designed to handle liquids with specific gravities up to 1.3 and viscosities to 100 SSU. 1 1/2" NPT Suction and Discharge Ports.

Features:

  • Cast stainless steel construction
  • Stainless steel self-cleaning, semi-open impeller
  • Carbon/Ceramic seal with Teflon® elastomers
  • Optional Car/Cer seal with Viton® elastomers available
  • Maximum working pressure: 75 PSI
  • Maximum temperature: 250 F
  • Self-Priming to 6 Ft.

Links to repair kits and optional equipment (where available) are located at the top and bottom of this page for your convenience.

Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP.

Interchangeable with Grainger Part # 2P125; Dayton Part # 4TE27, 2ZXT6; Teel Part # 4TE27, 2ZXT6


* AMT® 3894-98

3894-98 FEATURES

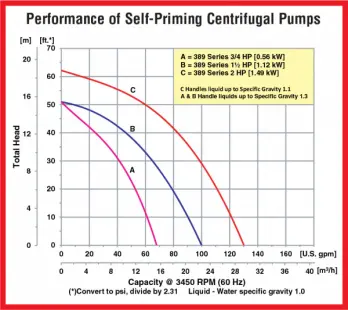

  • Handle Liquids with Specific Gravities Up to 1.3 & Viscosities to 100 SSU
  • 300 Series Stainless Steel Casing with Self-Cleaning, Semi-open Impeller
  • Teflon/SS Mechanical Seal and Teflon O-Ring with Available Factory Installed Viton/SS Mechanical Seal and O-Ring (389X-300-V0)
  • Self-Priming to 6 Ft
  • Dual Volute Design
  • 2 HP Totally Enclosed Fan Cooled (TEFC) Three Phase, 230/460 VAC/60 Hz, 56J Frame Motors

3894-98 SPECS

  • Pump Type: Self-Priming Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 56
  • Shipping Length IN: 17.3
  • Main Material: 303SS
  • Displacement per Stroke (gal):
  • Shipping Height IN: 9.5
  • SKU: AT389498SP
  • Engine Type:
  • MPN: 3894-98
  • Full Load Current:
  • Customs Code: HTS Code 8413702005
    Schedule B Code 8413702005
    ECCN Code EAR99
  • Driver Type: Electric Motor
  • Fuel Tank Capacity:
  • Shipping Width IN: 8.8
  • Outlet Size: 1.5
  • Inlet Size: 1.5
  • Outlet Connection Type: FNPT
  • Max FLow Rate: 130 GPM
  • Model #:
  • Motor Frame: 56J
  • Power: 2
  • Run Time:
  • Elastomers: PTFE
  • RPM: 3450
  • Porting Position:
  • Seal Material: PTFE/PTFE Mechanical Seal, PTFE Elastomers
  • Max Discharge Pressure: 26.8
  • Max Solids Size:
  • Inlet Connection Type: FNPT
