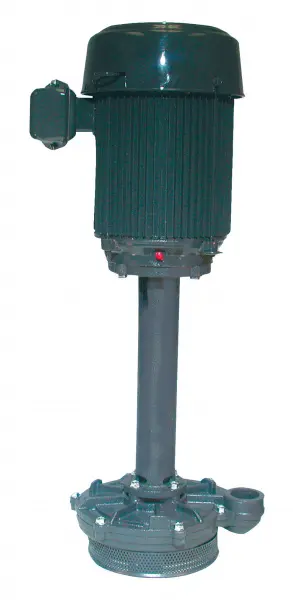

AMT® 4445-95 Vertical Sealless Sprayer/Washer Pump, Immersion Type

Part Number: 4445-95
The actual product may vary from images shown
$954.00
QTY:


4445-95 DETAILS

AMT® 4445-95 Vertical Sealless Sprayer/Washer Pump.

AMT® Vertical Sealless Sprayer/Washer Pumps are designed for OEM, automotive and industrial washing machines, parts cleaners, spray booths and cooling towers. No bottom bearing design and stainless steel impeller resist erosion from abrasives and ensures a long, maintenance free life for the pump. CNC machined stainless sTEEL PUMP® shafts. Built-In stainless steel suction screen protects pump from clogging and damage caused by large solids. Heavy duty universal mounting plates permit easy installation into existing tanks, booths, equipment, etc.

Features:

    Cast iron construction with 300 series investment cast stainless steel impeller
  • Stainless sTEEL PUMP® shaft
  • No bottom bearing!
  • Dual volute design reduces redial load on motor
  • Includes heavy duty universal mounting plate
  • Includes stainless steel suction screen
  • Maximum temperature: 200 F
  • Maximum recommended liquid viscosity: 100 SSU

* AMT® 4445-95

4445-95 FEATURES
  • Cast Iron Construction with 300 Series Investment Cast Stainless Steel Impeller
  • Sealless Design for Longer Life When Pumping Abrasives
  • Stainless Steel Pump Shaft
  • Dual Volute Design Reduces Radial Load on Motor
  • Stainless Steel Suction Screen Included
  • Heavy Duty Universal Mounting Plate Included

4445-95 SPECS

  • Pump Type: Centrifugal Immersion
  • Brand: AMT®
  • Shipping Weight LBS: 78.00
  • Shipping Length IN: 9.50
  • Main Material: Cast Iron
  • Displacement per Stroke (gal):
  • Shipping Height IN: 29.70
  • SKU: AT444595SP
  • Engine Type:
  • MPN: 4445-95
  • Full Load Current:
  • Fuel Tank Capacity:
  • Customs Code: HTS Code 8413702005
    Schedule B Code 8413702005
    ECCN Code EAR99
  • Driver Type: Electric Motor
  • Shipping Width IN: 10.80
  • Outlet Size: 1.5
  • Inlet Size:
  • Outlet Connection Type: FNPT
  • Model #:
  • Motor Frame: 56C
  • Run Time:
  • Elastomers:
  • Max FLow Rate: 90 GPM
  • Power: 3
  • Porting Position:
  • Inlet Connection Type:
  • Max Solids Size:
  • RPM: 3450
  • Seal Material: Sealless
  • Max Discharge Pressure: 36.4
