Home / Warren Rupp® Sandpiper® Pumps / Sandpiper® S10B1K1KPAS000. S10 Top Discharge Non-Metallic Ball Valve Pump

Sandpiper® S10B1K1KPAS000. S10 Top Discharge Non-Metallic Ball Valve Pump

Part Number: S10B1K1KPAS000.
The actual product may vary from images shown
$3,793.75
QTY:


S10B1K1KPAS000. DETAILS

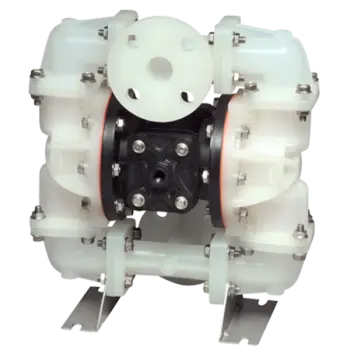

Sandpiper® S10B1K1KPAS000. 1" ANSI S10 Top Discharge Non-Metallic Ball Valve Pump

S10 Non-Metallic Pumps are ideally suited for highly corrosive fluids intermittent/on-demand, portable, low abrasive fluids and suspended solids. The pumps are constructed with TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

Recommended Accessories and Kits Sold Separately:

  • Sandpiper® 476.219.000 Air End Kit
  • Sandpiper® 476.166.354 Wet End Kit
  • Contact Us for Other Options and Accessories

S10B1K1KPAS000. SPECS

  • Pump Type: S10 Non-Metallic Ball Valve Diaphragm Pump
  • Brand: SANDPIPER®
  • Wetted Material: PVDF - Kynar
  • Non-Wetted Material: Polypropylene
  • Air Inlet Size: 0
  • Check Valve Seat: Ball Valve
  • Check Valve Type: Ball
  • Diaphragm Material: Santoprene
  • Porting Position: NPT Threads
  • Displacement per Stroke (gal): 0.03
  • Elastomers: Santoprene
  • Inlet Size: 1
  • Inlet Connection Type: ANSI 125# Flange
  • Max Air Inlet Pressure: 100
  • Max FLow Rate: 23 GPM
  • Max Solids Size: 0.015
  • Outlet Size: 1
  • Outlet Connection Type: ANSI 125# Flange
  • Shipping Weight LBS: 18.00
  • Shipping Length IN: 11.81
  • Shipping Width IN: 7.56
  • Shipping Height IN: 13.81
  • SKU: WRS10B1K1KPAS000SP
  • MPN: S10B1K1KPAS000.
  • Customs Code: HTS Code 8413.50.00.50
    Schedule B Code 8413.50.00.50
    HS Code 84131900
    ECCN Code EAR99

TECHNICAL DOCUMENTS

For domestic purchase only. Not for export.
