Home / AMT® Pumps / AMT 3995-96 4" NPT Premium Cast Aluminum w/Iron Engine Driven Trash Pump

AMT 3995-96 4" NPT Premium Cast Aluminum w/Iron Engine Driven Trash Pump

Part Number: 3995-96
The actual product may vary from images shown
$3,290.25
QTY:


3995-96 DETAILS

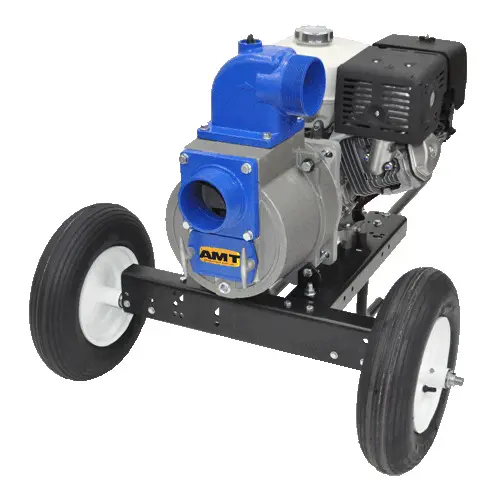

AMT 3995-96 4" NPT Premium Cast Aluminum w/Iron Engine Driven Trash Pump

AMT Engine Driven Trash pumps are designed for applications which require high flow efficiency and solid handling capability. These pumps are constructed of heavy duty sand cast aluminum components featuring removeable/replaceable cast iron volutes, impellers and wearplates. Simple cleanout design permits easy removal of trash and debris without disconnecting hoses. Cast iron discharge port rotates in 90° increments. An electric start option is available on many models.

Discharge Size / Connection: 4" FNPT
Suction Size / Connection: 4" FNPT
Main Construction Materials: Cast Aluminum with Iron
Solids Handling (In): 2
Seal: Viton®/SIC
Horsepower: 13
FrameNo
Engine Type: Honda GX390
Tank Size (Gal/Ltr): 1.95/7.0
Run Time (Hr): 3.5

3995-96 FEATURES
  • Cast Aluminum with Cast Iron Wearparts
  • Viton®/Silicon Carbide Mechanical Seal & Buna-N O-Ring/Gasket
  • 4" Cast Iron Male Port Sizes with 90° Rotatable Discharge Port
  • Self-Priming up to 20 Feet with Built-In Buna-N Check Valve
  • Engine Options: Honda Gasoline or Hatz Diesel Engines
  • 4" Models Feature Base, Rails and 16" Tires
  • Maximum Solids Handling up to 2"
  • Electric Start Option Available
  • Include Front Cleanout with Cast Aluminum Handles

3995-96 SPECS

  • Pump Type:
  • Brand: AMT®
  • Main Material: Cast Aluminum with Iron
  • Displacement per Stroke (gal):
  • Driver Type:
  • Elastomers:
  • Engine Type: Honda GX390
  • Fuel Tank Capacity: 7.80 qt
  • Full Load Current:
  • Inlet Size: 4
  • Inlet Connection Type: FNPT
  • Max Discharge Pressure:
  • Max FLow Rate:
  • Max Solids Size: 2
  • Motor Frame: No
  • Model #:
  • Outlet Size: 4
  • Outlet Connection Type: FNPT
  • Porting Position:
  • Power: 13
  • RPM:
  • Run Time: 210.00 min
  • Seal Material:
  • Shipping Weight LBS: 300.00
  • Shipping Length IN: 44.40
  • Shipping Width IN: 37.50
  • Shipping Height IN: 30.60
  • SKU: AT399596SP
  • MPN: 3995-96
  • Customs Code:
