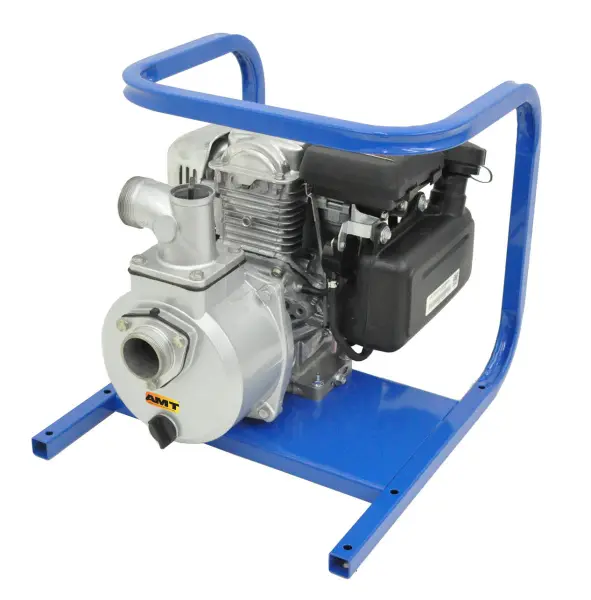

AMT® GCW3F 3 Inch NPT Cast Aluminum Sel-Priming Engine Driven Dewatering Pump

Part Number: GCW3F
The actual product may vary from images shown
$754.50
QTY:


GCW3F DETAILS

AMT® GCW3F 3 Inch NPT Cast Aluminum Sel-Priming Engine Driven Dewatering Pump

The AMT/IPT line of Engine Driven Utility pumps offers economy, durability, portability and performance all in one neat package. Ideal for general purpose dirty water dewatering, irrigation, spraying, washdown and agricultural applications. Pumps are designed to handle liquids with solids content or dissolved solids and debris.


Horsepower Class: 5VAC at 60Hz: FALSE
Max Head Height:

GCW3F FEATURES
  • Aluminum Construction
  • Buna-N Mechanical Seal and O-Ring
  • 2˝ to 3˝ NPT Port Sizes
  • Portable, Lightweight
  • Solids Handling and Dirty Water Design
  • Semi-Open, Clog Resistant Impeller
  • Engine 4-Cycle Options: Model GCW2F/GCW3F: CRX Engine

GCW3F SPECS

  • Pump Type: Dewatering Centrifugal
  • Brand: AMT®
  • Shipping Weight LBS: 70
  • Shipping Length IN: 20
  • Main Material: Cast Aluminum
  • Displacement per Stroke (gal):
  • Shipping Height IN: 17.6
  • SKU: ATGCW3FSP
  • Engine Type:
  • MPN: GCW3F
  • Full Load Current:
  • Customs Code:
  • Driver Type: Gasoline Engine
  • Fuel Tank Capacity: 0.87 Gal 3.3 Ltr, not qt
  • Shipping Width IN: 17.5
  • Outlet Size: 3
  • Inlet Size: 3
  • Motor Frame:
  • Outlet Connection Type: NPT
  • Model #:
  • Max FLow Rate:
  • Run Time: 120.00 min
  • Power: 5
  • Porting Position:
  • Elastomers:
  • RPM:
  • Max Solids Size: 0.25
  • Seal Material:
  • Max Discharge Pressure:
  • Inlet Connection Type:

TECHNICAL DOCUMENTS
