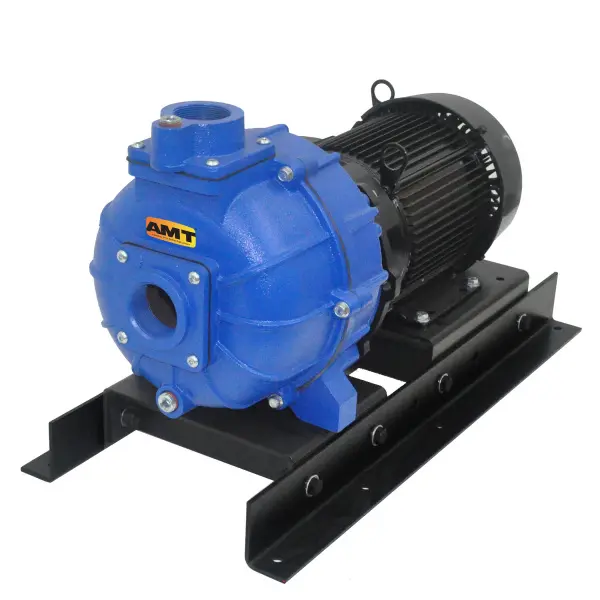

2" Self-Priming High Pressure Pumps

AMT 2” Self Priming High-Pressure Pumps are self-priming high-pressure booster pumps with a two-stage impeller design to provide additional pressure. All models feature cast iron construction with aluminum impellers and Viton Mechanical Seals. Built-in EPR/EPDM check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. These units are self-priming up to 20 feet and are suitable for high-pressure applications such as dewatering, sprinkler/booster, irrigation, and fire protection. Units are close coupled and are available in 7-1/2 to 10 horsepower TEFC electric motors.

• Cast Iron Construction with Aluminum Impeller
• Viton Mechanical Seal with EPR/EPDM Check Valve and O-Rings
• 2” NPT Suction and Discharge Ports
• Maximum Temperature 180° F
• Maximum Flow 122 GPM
• Max Head 270 Ft. (116 psi)
• Self-Priming to 20 Ft.
• Closed Vane Aluminum Impeller Designed for High-Pressure Performance
• 7-1/2 to 10 HP TEFC, Single and Three Phase Motors
• Optional Mounting Base Available (A200-90)
